544-SSW-S 16ft SSB Antenna Matches 532-VW-S

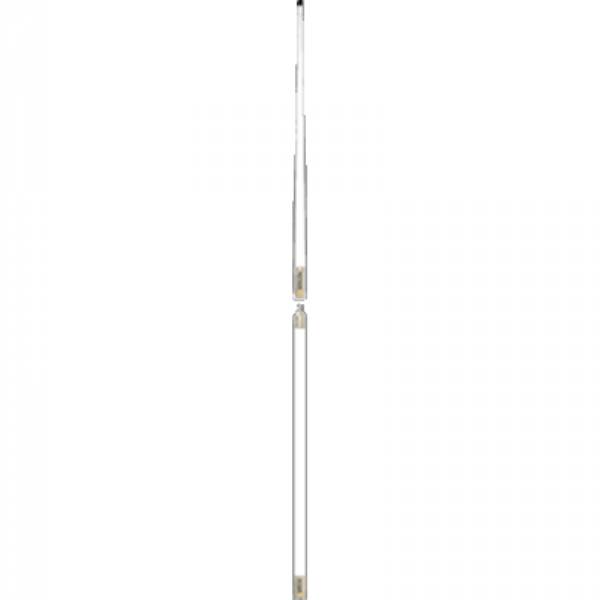

Digital Antenna 544-SSW-S 16 feet White SSB Antenna

Model: 544SSW-S

• Powerful brass radiators
• Soldered connections
• Centering foam insulator
• High gloss urethane finish
• 316 stainless steel ferrule

When the range of a VHF radio just won't do, offshore vessel operators choose Digital Antenna's high performance 16 feet Single Side Band antennas for exceptional communication over the entire HF frequency range (must use with a tuner). Heavy duty construction for use in the roughest seas, our SSB antennas are a popular choice for boaters when durability, performance and great looks are prerequisites.

This SSB antenna requires a side support located 3 feet to 4 feet from the base of the antenna.

Made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability. UPS shippable.

Specifications

Radiation Pattern	Omni-Directiona
VSWR	<1.5:1 = .5 - 30 MHz with Tuner
Max Input Power	1000 watts
Exterior Finish	White, UV stable poly-urethane coating
Ferrule	316 Stainless Steel
RF Termination	1/4 in- 20 stainless steel stud
Wind Rating	95 mph
Wire	Not included
Length	189.5

What's in the Box:

• Top section
• Bottom section
"
