SS2HF Battery Charger 2 Bank 20 Amps

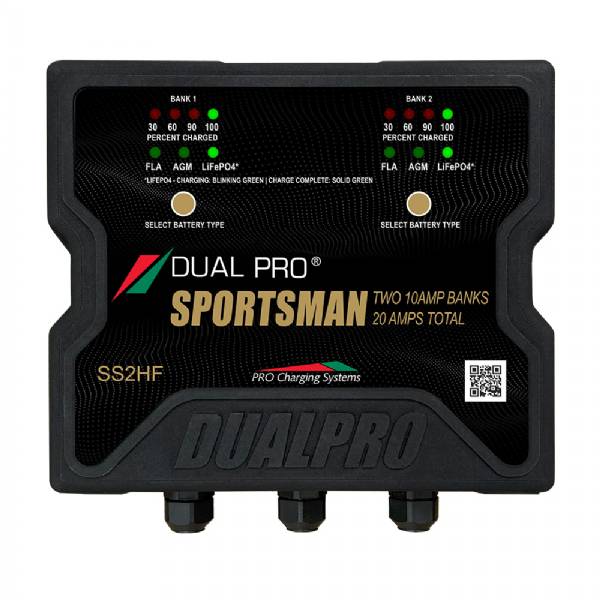

Dual Pro SS2HF Battery Charger

Model: SS2HF

• Selectable charge algorithm - each bank configures independently for Lithium (LiFePO4), Wet Cell or AGM
• High frequency design - substantially lighter and smaller than the original Sportsman Series
• True independent outputs that will not cut back
• Waterproof IP67 construction
• Designed for use in fresh and saltwater
• Dependable, rugged construction
• Fully automatic / multi stage charging
• Zero spark technology
• Reverse polarity protected
• Ignition protected (US Coast Guard 33 CFR 183.410)
• LED lights indicate the state of charge
• On-board diagnostic codes
• No installation restrictions

The Sportsman HF continues the SS legacy in a much lighter and smaller form factor. All SSHF chargers allow you to configure each bank to charge any combination of 12V Lithium (LiFePO4), Lead-Acid or AGM batteries. Applications include inland and saltwater watercraft, golf carts, utility carts, farm equipment, garage and shop equipment, RVs and trailers.

Specifications

Model	SS2HF
Description	Two 10 Amp Banks
Total Output	20 Amps
Size Per Unit	3.25"H x 8.00"W x 9.30"L
Weight Per Unit	7 lbs.
Battery System	12V - 24V
Battery Types	Lithium (LiFePO4), Wet Cell, AGM
Reverse Polarity	Yes
Indep. Outputs	Yes
Waterproof Rating	IP67
