SS4HF Battery Charger 4 Bank 40 Amps

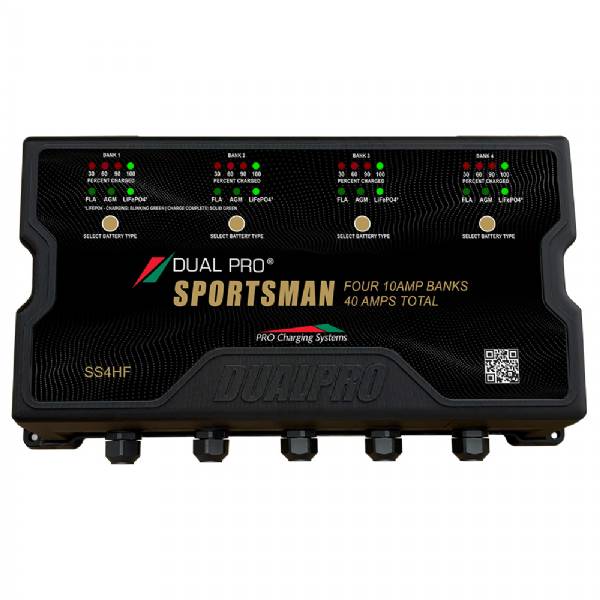

Dual Pro SS4HF Battery Charger

Model: SS4HF

• Selectable charge algorithm - each bank configures independently for Lithium (LiFePO4), Wet Cell or AGM
• High frequency design - substantially lighter and smaller than the original Sportsman Series
• True independent outputs that will not cut back
• Waterproof IP67 construction
• Designed for use in fresh and saltwater
• Dependable, rugged construction
• Fully automatic / multi stage charging
• Zero spark technology
• Reverse polarity protected
• Ignition protected (US Coast Guard 33 CFR 183.410)
• LED lights indicate the state of charge
• On-board diagnostic codes
• No installation restrictions

The Sportsman HF continues the SS legacy in a much lighter and smaller form factor. All SSHF chargers allow you to configure each bank to charge any combination of 12V Lithium (LiFePO4), Lead-Acid or AGM batteries. Applications include inland and saltwater watercraft, golf carts, utility carts, farm equipment, garage and shop equipment, RVs and trailers.

Specifications

Model	SS4HF
Description	Four 10 Amp Banks
Total Output	40 Amps
Size Per Unit	3.25"H x 8.00"W x 14.40"L
Weight Per Unit	11 lbs.
Battery System	12V - 48V
Battery Types	Lithium (LiFePO4), Wet Cell, AGM
Reverse Polarity	Yes
Indep. Outputs	Yes
Waterproof Rating	IP67
