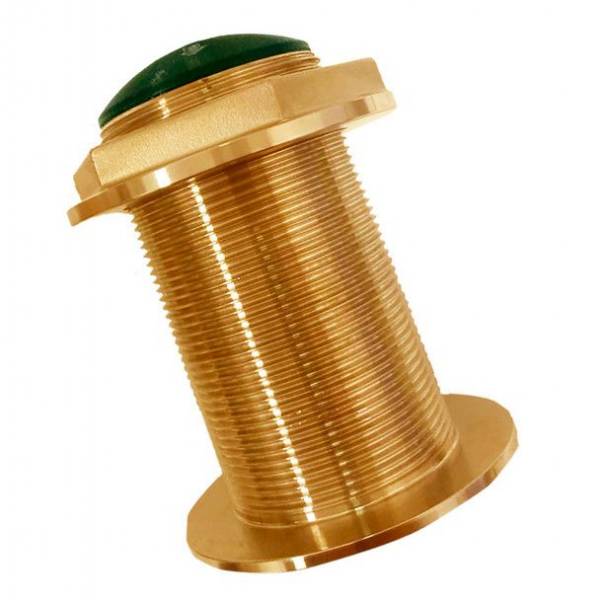

BT70D600CW-00 600w 50/200kHz 0d Tilted Element Bronze TH

Echonautics BT70D600 50/200kHz Bronze Thru-Hull with 0 degree Tilted Element

Model: BT70D600-00

Get target detail in shallow water and good deep-water botoom tracking.

this series is designed to minimiz drag and to perform at high speeds.

Specifications

Function	Depth and temperature
Frequency	50/200kHz
Mount type	Thru-hull
Tilt/deadrise	0 deg tilte for 0 deg to 7 deg hull deadrises
Material	Bronze
RMS Power	600 watts
Beamwidth	42 deg / 11 deg -3db
Depth	Max@50kHz = 1200ft Max at 200kHz = 700ft
Temp sensor	NTC
Acoustic window	Urethane
Weight	54oz
Cable length	27ft
Hole diameter	2.38

"
