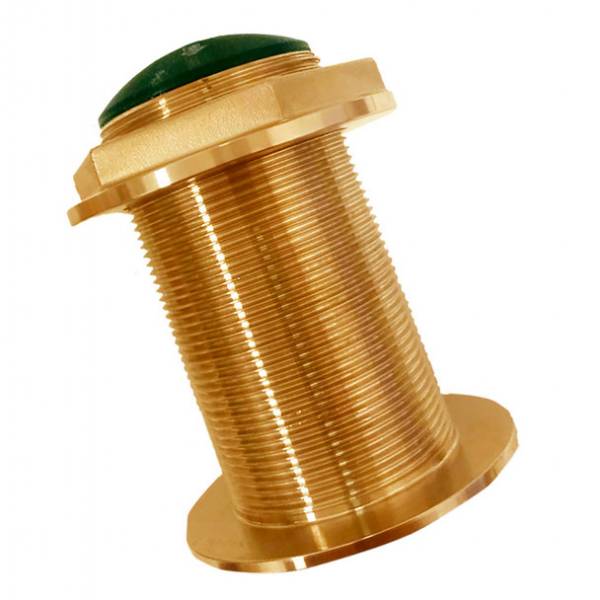

BT70H600-12 600w 130-210kHz High CHIRP 12d Tilted Element Bronze TH

Echonautics BT70H600 130-210kHz High CHIRP 600watts 12 deg Tilted Element

Model: BT70H600-12

A low-profile thru hull CHIRP transducer, that matches vessels deadrise to specific angle.

Designed to minimize drag and to perform at high speeds

Specifications

Function	Depth and Temperature
Frequency	CHIRP 130-210kHz
Mount style	Thru Hull
Tilt/deadrise	12 deg tilted element ; for 8 deg to 15 deg hull deadrise
Material	Bronze
RMS Power	600 watts
Hole diameter	2.38 in
Cable length	27 ft
Temperature sensor	NTC
Accoustic window	Urethane
