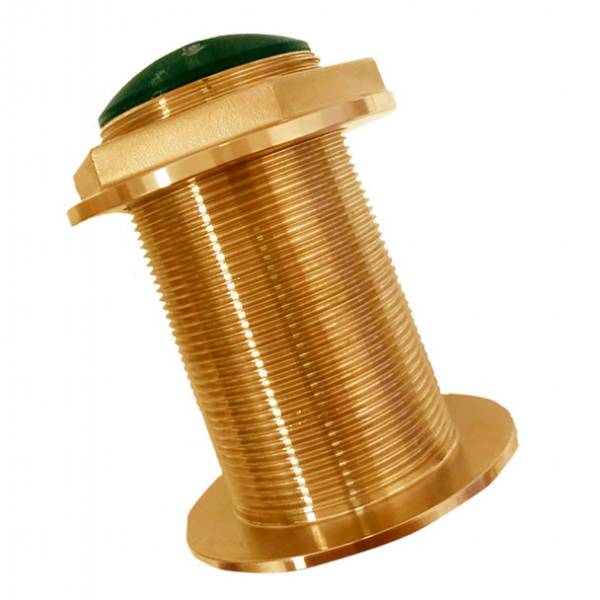

BT70L300-18 300w 40-75kHz Low CHIRP 18d Tilted Element Bronze TH

Echonautics BT70L300 40-75kHz Low CHIRP 300watts 18 deg Tilted Element

Model: BT70L300-18

A low-profile thru hull CHIRP transducer, that matches vessels deadrise to specific angle.

Designed to minimize drag and to perform at high speeds

Specifications

Function	Depth and Temperature
Frequency	CHIRP 40/75kHz
Mount style	Thru Hull
Tilt/deadrise	18 deg tilted element ; for 16 deg to 24 deg hull deadrise
Material	Bronze
RMS Power	300 watts
Hole diameter	2.38 in
Cable length	27 ft
Temperature sensor	NTC
Accoustic window	Urethane
