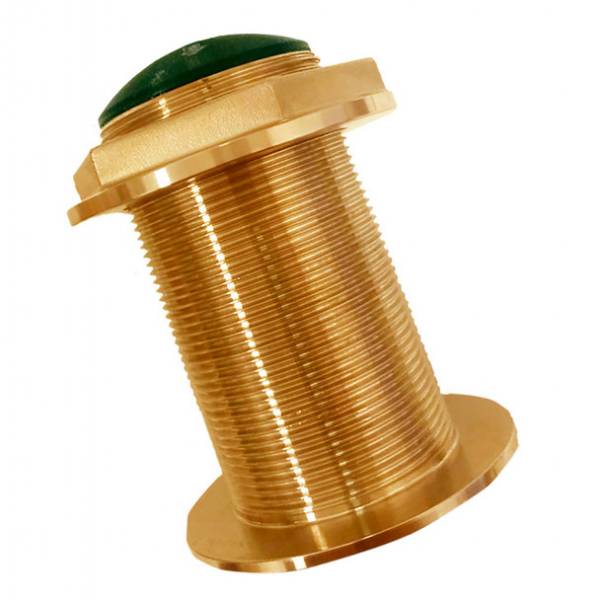

BT70MA600-18 600w 80-130kHz Medium CHIRP 18d Tilted Element Bronze TH

Echonautics BT70MA600 80-130kHz Medium CHIRP 600watts 18 deg Tilted Element

Model: BT70MA600-18

A low-profile thru hull CHIRP transducer, that matches vessels deadrise to specific angle.

Designed to minimize drag and to perform at high speeds

Specifications

Function	Depth and Temperature
frequency	CHIRP 80-130kHz
Mount style	Thru Hull
Tilt/deadrise	18 deg tilted element ; for 16 deg to 24 deg hull deadrise
Material	Bronze
RMS Power	600 watts
Beamwidth	24 deg to 17 deg @3db
Depth	max 900ft
Temperature sensor	NTC
Accoustic window	Urethane
Cable length	27ft
Hole diameter	2.38 in
