EGIS
2410 e-Series 350A Dual Circuit Battery Switch Off/On
- Manufacturer part #
- 2410
- UPC
- 850067590576
- Condition
- New
$50.95
In stock
Estimated to ship by Monday, October 19.
Product details

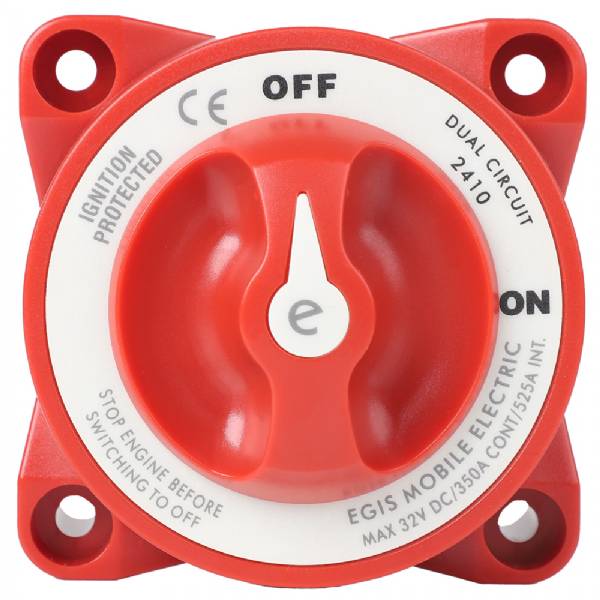

EGIS e-Series 350A Dual Circuit Battery Switch Off/On
Model: 2410
- Ignition Protected
- Flexible Mounting Options
- 4 Year Leading Warranty
- Sealed Against Dust & Water Intrusion to ensure reliable circuit protection for the life of the electrical system installation.
- Safe for installation in closed compartments with potential explosive gases.
- Serrated Flange Lock Nuts improves resistance to cable terminal loosening in high-vibration environments.
- Isolates Electrical Loads from batieries when electrical system is not in use, ensuring current draw from load side of switches is eliminated.
Specifications
| Maximum Voltage (Single Circuit) | 48V DC |
| Maximum Voltage (Selector / Dual Circuit) | 32V DC |
| Stud/Thread Size | 3/8"-16 |
| Ring Terminal Size Acceptance | 3/8" (M10) |
| Mounting Holes | 1/4" (M6) Screw |
| Panel/Bulkhead Mount Hole Size | 3-5/8" Diameter |
Shipping weight: 1.5 lb
