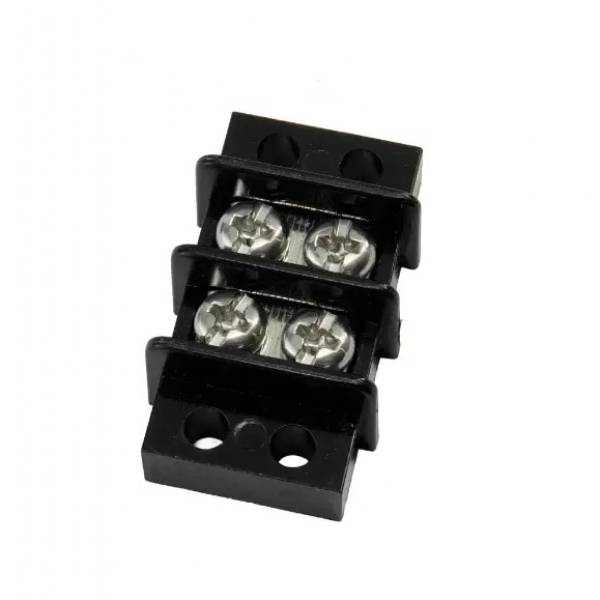

Terminal Block 20A - 2 Circuit

EGIS Terminal Block 20A - 2 Circuit Retail Pack

Model: 2220-02

• 125 Volt AC or DC Rated easily supports 12, 24, 36, and 48 Vdc systems, as well as 120/240 Vac applications (ensure implementation meets applicable accessibility standards as applicable.
• Anti-Rotation Ribs on conductor strips reduce the chance of wire terminal rotation if strain relief distances are long.
• Protects Ring Terminal Splices from shorting to adjacent circuits or ground with high insulation walls.
• Bullet-proof Construction: High temperature insulation material, tin plated copper alloy conductors, and stainless steel hardware.
• 4 Year Warranty: We stand behind our product's ability to meet your needs.

Screw Terminal Connection Pairs provide one input and one output screw connected to separate copper alloy bus bars for each matching connecting pair. Terminals blocks available in 2, 4, 6, 8, 10, or 12 matching connection pairs.

Marine Grade Materials ensure long lasting reliability in harsh environment applications. Tin plated copper alloy conductors, stainless steel hardware, and high temperature insulation materials deliver a robust solution.

Specifications

CONTINUOUS CURRENT (AMPS)	20
MAX VOLTAGE	240
Dielectric Strength	2000Vac
Hardware Material	Stainless Steel
