12V-24V 7 Amp Converter f/DRS12AX X-Class Open Array - Newmar

12V-24V 7 Amp Converter for DRS12AX X-Class Open Array - Newmar

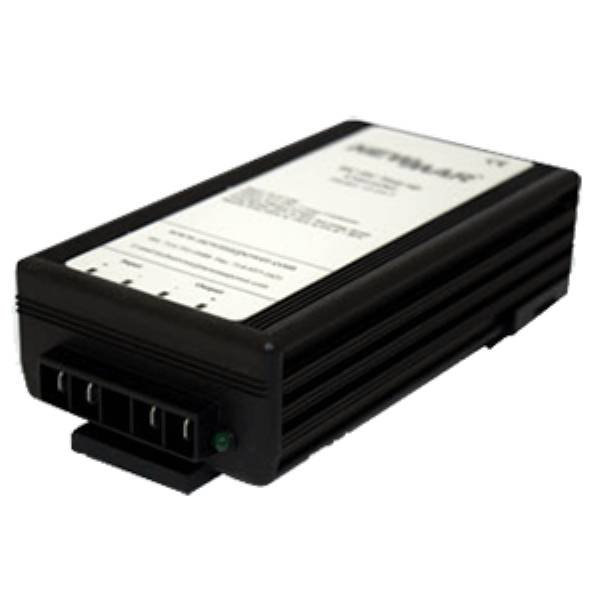

Newmar 12-24-7 Step Up Dc-Dc Converter 7amp Conitnuos

These "UP" converters produce 24 volts from 12 volt systems and are ideal for managing dual voltage applications on marine vessels without having to install a 24 volt battery and dedicated charging system. Choose from two types depending on your application:

In the Standard, Non-Isolated Series the 12V input and 24V output share a common negative ground and are ideal when installing certain electronics that operate better on 24 volts when a robust 12 volt system exists. Models available in outputs of 7, 16 and 25 amps.

Standard, Non-Isolated Series

• Intended for use on negative ground systems
• 10 -15 VDC input range
• 7 Amp output
• Current limited, voltage spike suppression, automatic thermal shutdown and recovery

Specifications:

• Input: 10 - 15V DC
• Output: 27.2 VDC +/-5% at extreme temperature load, input, tolerance, etc.
• Ripple: <100mV P-P
• Regulation: +/- 5% Line/Load
• Duty Cycle:
• Intermittent: 2 minutes, 20% duty
• Continuous: 24 hours, 100% duty
• Operating Temp: -25º - 30º C, derate linearly from 30 to 0% @ 80º C

Mechanical

• Efficiency: 93% - Typical.
• Anodized aluminum, glass filled polycarbonate, dust water and impact resistance to IP533
• Front panel terminal block
• Output indicator: Green LED
