FURUNO

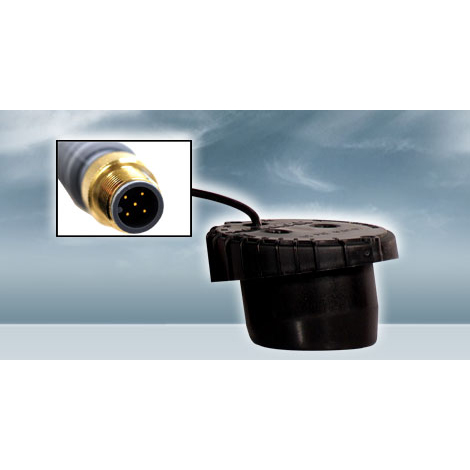

235-IHF In-Hull NMEA 2000 Smart Transducer
- Manufacturer part #
- 235-IHF
- UPC
- 611679330529
- Condition
- New
$364.95
In stock
Estimated to ship by Monday, October 19.
Product details
- 235KhZ
- Weight: 0.9 kg (2 lb)
- Acoustic Window: Layered plastic urethane
- Hull Deadrise: 0 deg: to 22 deg:
- Data Update Rate: 1 per second
- Minimum Depth Range: 0.5 m (1.6?)
- Maximum Depth Range: Up to 150 m (500?)
- Pressure Rating: 3 m (10?)
- Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)?*p/nm = pulses per nautical mile
- Supply Voltage: 9 VDC to 16 VDC
- Supply Current: 200 mA
- Cable Length: 6 m (20?) devicenet
- NMEA 2000(R) Load Equivalency Number (LEN): 4
- CE Regulation: Complies to IERC945
Specifications
P79 Housing Style Transducer
235KhZ
Weight: 0.9 kg (2 lb)
Acoustic Window: Layered plastic urethane
Hull Deadrise: 0° to 22
Data Update Rate: 1 per second
Minimum Depth Range: 0.5 m (1.6’)
Maximum Depth Range: Up to 150 m (500’)
Pressure Rating: 3 m (10’)
Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
Supply Voltage: 9 VDC to 16 VDC
Supply Current: 200 mA
Cable Length: 6 m (20’) devicenet
NMEA 2000® Load Equivalency Number (LEN): 4
CE Regulation: Complies to IERC945
235KhZ
Weight: 0.9 kg (2 lb)
Acoustic Window: Layered plastic urethane
Hull Deadrise: 0° to 22
Data Update Rate: 1 per second
Minimum Depth Range: 0.5 m (1.6’)
Maximum Depth Range: Up to 150 m (500’)
Pressure Rating: 3 m (10’)
Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile
Supply Voltage: 9 VDC to 16 VDC
Supply Current: 200 mA
Cable Length: 6 m (20’) devicenet
NMEA 2000® Load Equivalency Number (LEN): 4
CE Regulation: Complies to IERC945
Shipping weight: 2.5 lb
