FURUNO

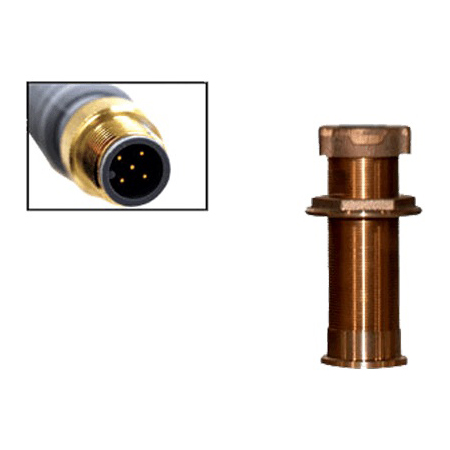

235-MSLF Long Stem Bronze Thru-Hull Depth/Temp NMEA2000 Smart Sensor
- Manufacturer part #
- 235-MSLF
- UPC
- 611679330536
- Condition
- New
$631.95
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Product details
- 235KhZ
- Weight: 3.9 kg (8.7 lb)
- Acoustic Window: Urethane
- Hull Deadrise: Up to 28 deg with fairing
- Hole Diameter: 51 mm (2?)
- Data Update Rate: 1 per second
- Minimum Depth Range: 0.5 m (1.6?)
- Maximum Depth Range: Up to 180 m (590?)
- Pressure Rating: 3 m (10?)
- Pulse Rate: 20,000 p/nm (5.6 Hz per knot)
- Supply Voltage: 9 VDC to 16 VDC
- Supply Current: 200 mA
- Standard Cable Length: 6 m (20?)
- Temperature Sensor Accuracy: ±0.5 degC (±1.8 degF)
- Temperature Sensor Range: -10 degC to 40 degC (14 degF to 104 degF)
- NMEA 2000(R) Load Equivalency Number (LEN): 4
Specifications
B122 Housing Style Transducer
235KhZ
Weight: 3.9 kg (8.7 lb)
Acoustic Window: Urethane
Hull Deadrise: Up to 28° with fairing
Hole Diameter: 51 mm (2”)
Data Update Rate: 1 per second
Minimum Depth Range: 0.5 m (1.6’)
Maximum Depth Range: Up to 180 m (590’)
Pressure Rating: 3 m (10’)
Pulse Rate: 20,000 p/nm (5.6 Hz per knot)
Supply Voltage: 9 VDC to 16 VDC
Supply Current: 200 mA
Standard Cable Length: 6 m (20’)
Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
NMEA 2000® Load Equivalency Number (LEN): 4
CE Regulation: Complies to IERC945
High Speed Fairing Block included
235KhZ
Weight: 3.9 kg (8.7 lb)
Acoustic Window: Urethane
Hull Deadrise: Up to 28° with fairing
Hole Diameter: 51 mm (2”)
Data Update Rate: 1 per second
Minimum Depth Range: 0.5 m (1.6’)
Maximum Depth Range: Up to 180 m (590’)
Pressure Rating: 3 m (10’)
Pulse Rate: 20,000 p/nm (5.6 Hz per knot)
Supply Voltage: 9 VDC to 16 VDC
Supply Current: 200 mA
Standard Cable Length: 6 m (20’)
Temperature Sensor Accuracy: ±0.5°C (±1.8°F)
Temperature Sensor Range: -10°C to 40°C (14°F to 104°F)
NMEA 2000® Load Equivalency Number (LEN): 4
CE Regulation: Complies to IERC945
High Speed Fairing Block included
Shipping weight: 7.6 lb
