FURUNO

520T-BLD Bronze Thru Hull B117 Depth/Temp 10-Pin

Name: 520T-BLD Bronze Thru Hull B117 Depth/Temp 10-Pin
Brand: FURUNO
SKU: 72079
Price: 218.95 USD
Availability: BackOrder

$218.95

Available for backorder

Expected in our warehouse on Friday, November 6. Estimated to ship by Tuesday, November 10.

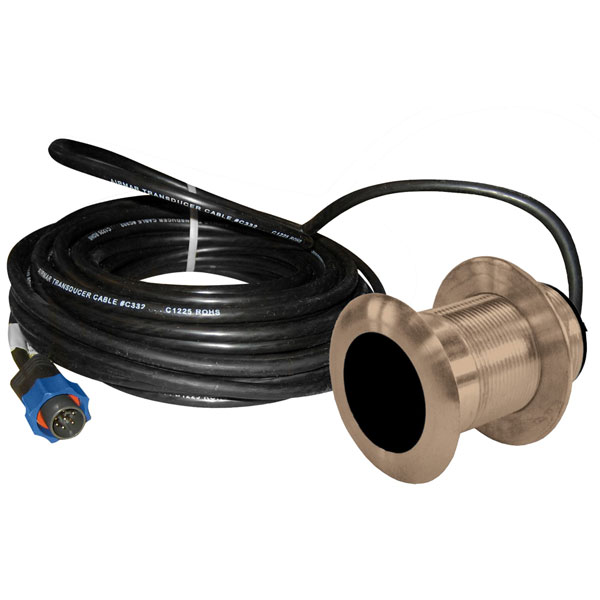

Furuno 520T-BLDLow Profile Broze Thru-Hull Depth and Temp Transducer - 10-Pin

Model: 520T-BLD

depth and temperature
600 W
50 kHz with a wide 45 deg beamwidth for performance to 353 m (1,200 feet)
200 kHz with a 12 deg beamwidth for performance to 206 m (700 feet)
Right-angle cable exit saves space and protects transducer if stepped on
Included rubber washer allows tightening of the hull nut to irregular hull surfaces
Low-profile, bronze housing has minimal drag
Plastic P319 and stainless steel SS60 models are also available to accommodate all hull materials and deadrise angles
30 Foot Cable with 10-Pin Connector

Specifications

Weight	0.9 kg (2.0 lb.)
Recommended Boat Length	Up to 8 m (25 feet)
Hull Material	Fiberglass or wood
Hull Deadrise	Best performance through 7 deg. Can accommodate up to a 12 deg.
Acoustic Window	Urethane
Hole Diameter	51 mm (2)

Depth & Temp
50/200 kHz
Cone 45 12
600 W RMS
Mid-Performance
Bronze
Thru-Hull mount
10-pin

Transducer with mount and installation instructions.

Shipping weight: 3.3 lb
