FURUNO
526-TIDHDN 1KW Brz TH No Plug With Block
- Manufacturer part #
- 526TID-HDN
- UPC
- 611679310613
- Condition
- New
$1,306.95
In stock
Estimated to ship by Monday, October 19.
Free ground shipping (48 states)
Overview

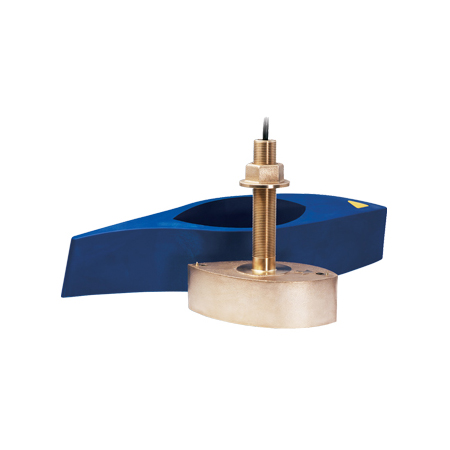

526T-HDN Thru-Hull Transducer with Broadband Technology
1 kW
50/200 kHz, no Diplexer
20/6 degree Beam Angles
Bronze Thru-Hull with Temperature
10 Meter Cable
No connector provided
Ships with High-Speed Fairing Block, # AIR-033-391
MB1100 required for some applications - contact Furuno for more information
Specifications
Thru-Hull, Bronze Housing, Fairing included
• Depth and Temperature
• 50/200 kHz
• 1,000 Watts
• 12 m (39’) Cable
• Broadband
• Separate 50 and 200 kHz ceramics
• Top performing 1 kW broadband transducer
gives you crystal clear imaging at all depths
• For use with sportfishing and commercial
fishing boats 11 m (35') and up with
fiberglass and wood hulls
• Deadrise angles up to 22º
• Broadband Ceramic Technology:
• Provides better image detail and resolution
• Distinguishes individual fish targets and fish tight
to the bottom
• Beam Width: 50 kHz—19° 200 kHz—6°
• Depth Range: 50 kHz—549m to 762m
(1800’ to 2500’) 200kHz—213m to 305m
(700’ to 1000’)
• Depth and Temperature
• 50/200 kHz
• 1,000 Watts
• 12 m (39’) Cable
• Broadband
• Separate 50 and 200 kHz ceramics
• Top performing 1 kW broadband transducer
gives you crystal clear imaging at all depths
• For use with sportfishing and commercial
fishing boats 11 m (35') and up with
fiberglass and wood hulls
• Deadrise angles up to 22º
• Broadband Ceramic Technology:
• Provides better image detail and resolution
• Distinguishes individual fish targets and fish tight
to the bottom
• Beam Width: 50 kHz—19° 200 kHz—6°
• Depth Range: 50 kHz—549m to 762m
(1800’ to 2500’) 200kHz—213m to 305m
(700’ to 1000’)
Shipping weight: 27 lb
