FURUNO
526TID-LTD20 50/200 20d Tilted Element B164
- Manufacturer part #
- 526TIS-LTD/20
- UPC
- 611679313393
- Condition
- New
$967.95
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Product details

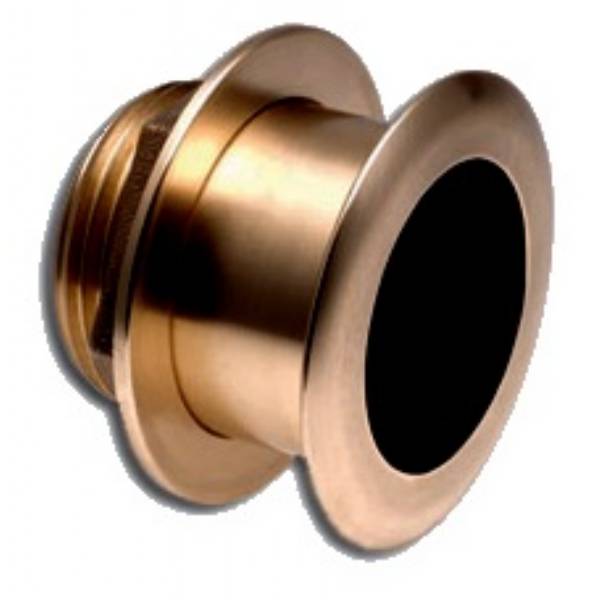

Furuno 526TID-LTD20 50/200
20d Tilted Element B164
Model: 526TID-LTD20Bronze Thru-Hull, Low Profile Transducer with Temp, 1kW (10-Pin), 20 deg Tilted Element
Airmar B164 Housing Style Transducer
If a thru-hull flush-style transducer is called for, the Tilted Element 526TID-LTD/20 is right for hulls with a deadrise angle of between 16 deg and 24 deg. This transducer compensates for deadrise by angling the element inside the housing.
The transducer is labeled with an arrow on top of the housing that should point towards the keel, whether it is installed to port or starboard. This ensures that the tilted element within the housing is given the correct orientation.
Specifications| Beam Angle | 20 and 6 Degrees |
| Housing Type | Bronze |
| Power Rating | 1 kW |
| Frequency | 50 and 200 kHz |
| Install Type | Thru Hull |
| Shipping Info | 12 lbs, 10x8x6 |
Shipping weight: 12 lb
