FURUNO

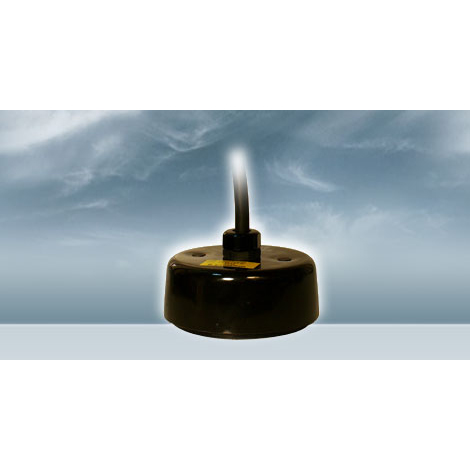

CA82B-35R FRP Tank-Mounted Transducer - 65kHz-110kHz - 2kW (No Plug)
- Manufacturer part #
- CA82B-35R
- UPC
- 011679309099
- Condition
- New
$3,321.95
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.
CA82B-35R FRP Tank-Mounted Transducer - 65kHz-110kHz - 2kW (No Plug)
Furuno's CA82B-35R transducer has a wide bandwidth of 65kHz-110kHz, and is usable with the FCV295, FCV292*, FCV1150, FCV1100, FCV1200, DFF3 and BBFF3. When used with the FCV1100/1200, sensitivity remains high even if the frequency is shifted +/- 10% to suppress interference.
The CA82B-35R may be installed in the tank of the CA88B-10 or CA100B-10R. When retrofitting these or other transducers, the directional pattern and sidelobe characteristics of the beam will be different, and therefore the sounder image may differ from previous installations.
Features:
*88kHz frequency only
Shipping Information: 12 lbs, 14 x 14 x 9
Furuno's CA82B-35R transducer has a wide bandwidth of 65kHz-110kHz, and is usable with the FCV295, FCV292*, FCV1150, FCV1100, FCV1200, DFF3 and BBFF3. When used with the FCV1100/1200, sensitivity remains high even if the frequency is shifted +/- 10% to suppress interference.
The CA82B-35R may be installed in the tank of the CA88B-10 or CA100B-10R. When retrofitting these or other transducers, the directional pattern and sidelobe characteristics of the beam will be different, and therefore the sounder image may differ from previous installations.
Features:
- 2kW
- Selectable frequency - 65kHz to 110kHz
- Beam angle becomes sharper at higher frequencies: 68kHz = 12.5°, 88kHz = 9.6°, 107kHz = 7.7°
- Rugged FRP construction - tank mounted
- 15 meter cable
- No connector provided
*88kHz frequency only
Shipping Information: 12 lbs, 14 x 14 x 9
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.Specifications
2 kW
Selectable frequency - 65kHz to 110kHz
Beam angle becomes sharper at higher frequencies:
68kHz = 12.5 degrees
88kHz = 9.6 degrees
107kHz = 7.7 degrees
Rugged FRP construction - tank mounted
15 meter cable, no connector provided
Selectable frequency - 65kHz to 110kHz
Beam angle becomes sharper at higher frequencies:
68kHz = 12.5 degrees
88kHz = 9.6 degrees
107kHz = 7.7 degrees
Rugged FRP construction - tank mounted
15 meter cable, no connector provided
Shipping weight: 13 lb
