DRS6AX 6Kw X-BAND Pedes Pedestal And Cable 3.5ft Antenna

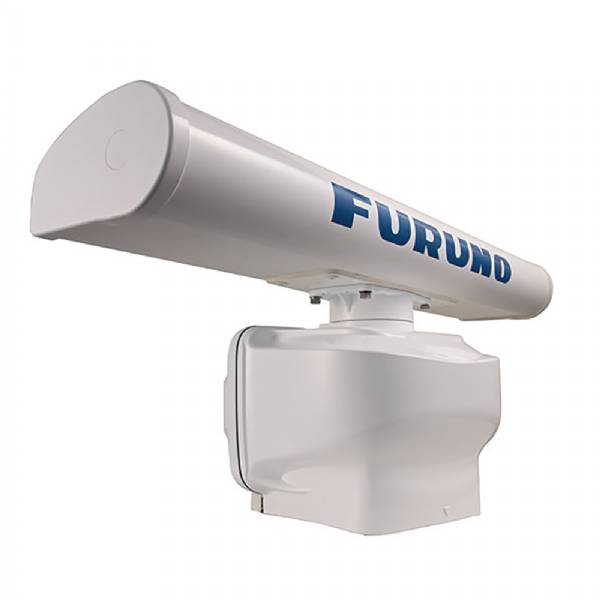

Furuno DRS6AX 6kw UHD Digital Radar with 3.5 feet Antenna and 15M Cable

Model: DRS6AX/3

• 6kW Power Output
• Enhanced target detection, both short and long range
• Minimum detection range of just 20 m
• Fast Target TrackingTM
• Bird Mode
• New pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
• No PSU required, decreasing total costs
• Easy installation without the need to open pedestal unit
• New smart-connector cable
• Choice of 3.5 feet/4 feet/6 feet Antenna Sold Seperately
• Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)
• The DRS6AX is a 24V system; a converter will be required for use with 12V power systems

Pushing the boundaries of what is possible with conventional Radar technology, DRS6A X-Class marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS6A X-Class Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.

The newly redesigned pedestal unit is 20% lighter than previous DRS6A model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target TrackingTM function adopted from our commercial Radar FAR3000, is also available on the DRS6A X-Class. Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Specifications

Antenna rotation speed	24/36/48 rpm range coupled or 24rpm fixed
Beam width	2.3d Horizontal 22d Vertical
Range scales	0.0625 to 120 nm
Waterproofing	IP56
Power supply	24vDC 4.0A

What's in the Box:

• 001-376-480-00 15m Cable
• RSB134-112 Pedestal
• Xn10A/3.5 3.5 feet Antenna
