FURUNO

DRS6AX 6Kw X-BAND Pedes Pedestal And Cable 6ft Antenna

Manufacturer part #: DRS6AX/6
UPC: 011679390097
Condition: New

$7,090.00

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Free ground shipping (48 states)

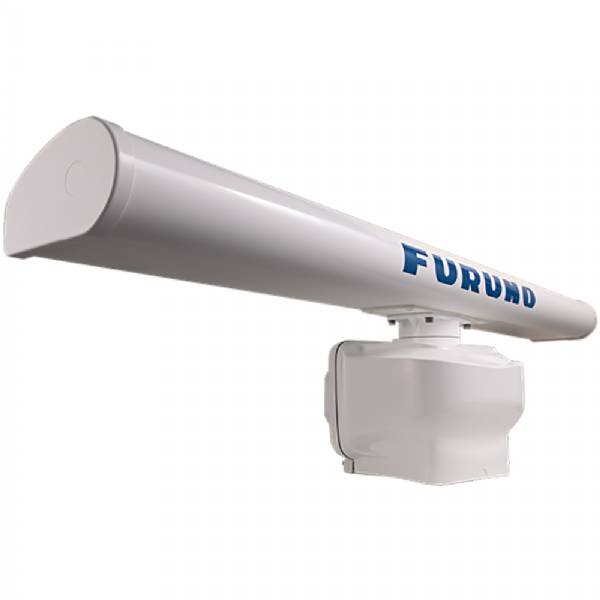

Furuno DRS6AX 6kw UHD Digital Radar with 6 feet Antenna and 15M Cable

Model: DRS6AX/6

6kW Power Output
Enhanced target detection, both short and long range
Minimum detection range of just 20 m
Fast Target TrackingTM
Bird Mode
New pedestal unit, 20% lighter than previous DRS6A unit, updated low noise motor
No PSU required, decreasing total costs
Easy installation without the need to open pedestal unit
New smart-connector cable
The DRS6AX is a 24V system; a converter will be required for use with 12V power systems
Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)

Pushing the boundaries of what is possible with conventional Radar technology, DRS6A X-Class marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS6A X-Class Radar features improved short range detection, as well as an impressive long range detection of up to 120 nautical miles.

The newly redesigned pedestal unit is 20% lighter than previous DRS6A model and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target TrackingTM function adopted from our commercial Radar FAR3000, is also available on the DRS6A X-Class. Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

Specifications

Antenna rotation speed	24/36/48 rpm range coupled or 24rpm fixed
Beam width	1.35d Horizontal 22d Vertical
Range scales	0.0625 to 120 nm
Waterproofing	IP56
Power supply	24vDC 4.0A

What's in the Box:

001-376-480-00 15m Cable
RSB134-112 Pedestal
XN13A/6 6 feet Antenna

Shipping weight: 53.05 lb
