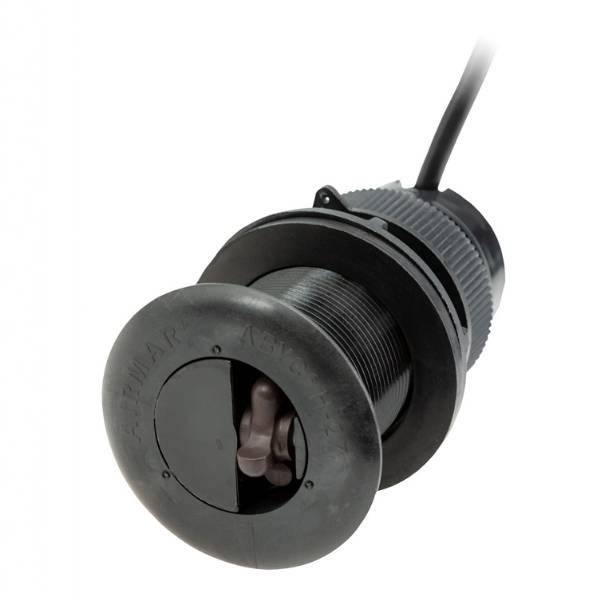

DST810PSF NMEA 2000 Airmar Smart Transducer Plastic Thru Hull

Furuno DST-810 active Depth, Speed, Temperature thru-Hull Plastic 235 kHz transducer.

Model: DST-810PSF

• 5 Hz speed output (5X per second) for visibly smoother speed-through-water reporting and faster data for better decision making
• Integrated attitude sensor for heel and trim benefits sailing and power boats
• Advanced Speed Calibration allows for manual speed entries for multiple heel angles and up to 10 speeds, formerly only possible through expensive PC software
• DST810 stores configurations and delivers data to the NMEA 2000(R) network.
• Depth, heel-corrected speed-through-water, heel and trim, and water temperature from one installed multisensor.
• Popular depth sensor for shallow water performance.

Specifications

Acoustic Window	Urethane
Hull Deadrise	Up to 22 deg
Data Update Rate	Depth 1X/second
Data Update Rate	Speed 5X/second
Attitude Accuracy	+/- 1 deg nominal after sensor calibration
Depth Frequency	235 kHz
Minimum Depth Range	0.5 m (1.6 feet)
Maximum Depth Range	Up to 100 m (330 feet)-NMEA 2000(R)
Speed Range	Up to 45 knots
Pressure Rating	3 m (10 feet)
Pulse Rate	20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile
Supply Voltage	9 VDC to 16 VDC-per NMEA 2000
Supply Current	<200 mA-per NMEA 2000(R)
Wireless Protocol	Bluetooth Low Energy (BLE)
Wireless Range	Up to 30 feet depending on mount location
Standard Cable Length	6 m (20 feet) DeviceNet-NMEA 2000(R)
Temperature Sensor Accuracy	+/-0.5 degC (+/-1.8 degF)
Temperature Sensor Range	-10 degC to 40 degC (14 degF to 104 degF)
NMEA 2000 Load Equivalency Number (LEN)	3

What's in the Box:

• DST-810 Insert
• Plastic Housing
