FURUNO

DT-800MSF Bronze TH NMEA2000 Depth And Temp

Manufacturer part #: DT-800MSF
UPC: 611679330543
Condition: New

$379.95

In stock

Estimated to ship by Tuesday, October 20.

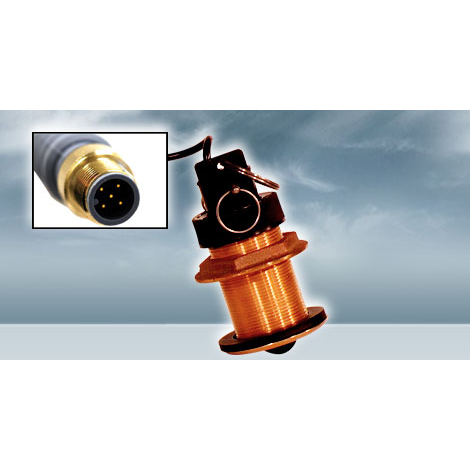

Furuno DT-800MSF Depth and temperature in one compact bronze housing

Model: DT-800MSF

Depth and temperature in one compact bronze housing
Fast-response temperature sensor provides ±0.2 degC (±0.1 degF) accuracy
Acoustic Window: Urethane

Designed with Airmar's exclusive Broadband Ceramic Technology, the DT-800MSF's 235 kHz element improves resolution without sacrificing sensitivity. The higher power rating 100 W RMS provides spot-on depth readings in as little as 0.45 m (1.4 feet) of water and can reach depths up to 180 m (600 feet).

Specifications

Weight	1.5 kg (3.4 lb)
Data Update Rate	1 per second
Minimum Sounding Depth	0.5 m (1.6 feet)
Maximum Sounding Depth	180 m (590 feet)
Pressure Rating	3 m (10 feet)
Pulse Rate	20,000 p/nm* (5.6 Hz per knot)-*p/nm = pulses per nautical mile
Smart Sensor Supply Voltage at 100% Sound Power Output	10 VDC to 25 VDC
Supply Current	40 mA S
tandard Cable Length	6m
NMEA 2000(R) Load Equivalency Number (LEN)	4

Specifications

Acoustic Window: Urethane
Data Update Rate: 1 per second
Minimum Sounding Depth: 0.5M (1.6')
Maximum Sounding Depth: 180M (590)
Pressure Rating: 3M (10')
Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)
Smart Sensor Supply Voltage at 100% Sound Power Output: 10 VDC to 25 VDC
Supply Current: 40 mA
Standard Cable Length: 6M
NMEA 2000® Load Equivalency Number (LEN): 4

*p/nm = pulses per nautical mile

Shipping weight: 3.4 lb · Package dimensions: 10 × 8 × 7 in
