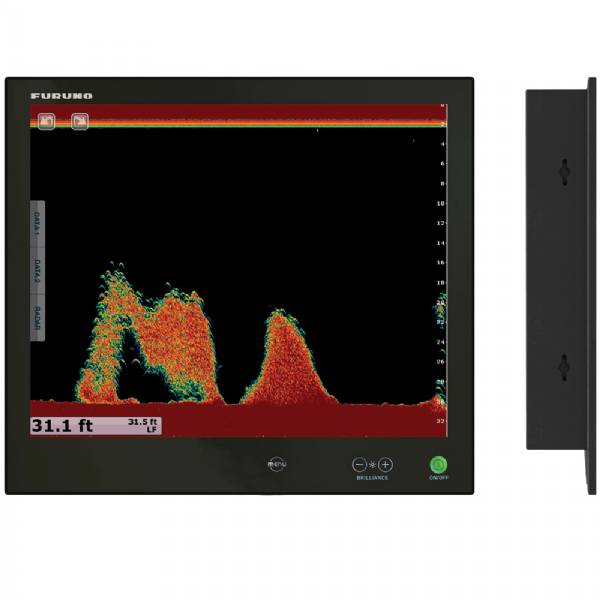

MU195T 19in Multi Touch Display for NavNet TZtouch

Furuno MU195T 19in Multi Touch Marine Display for NavNet Tztouch

Model: MU195T

GLASS BRIDGE DISTINCTION
The Furuno Multi Touch Monitor series offers an edge-to-edge glass design, giving your bridge or helm a stylish, rich and beautiful appearance. They feature Glass Display Controls and brilliant LED Backlighting, making them easy to see and operate at virtually any angle. These monitors are the perfect match for our NavNet TZtouch/TZtouch2 Black Box systems, giving you a high-tech, all glass bridge.

PIP & PBP
With multiple video inputs (1 Device Port 1.2, 2 DVI, 2 NTSC/PAL (BNC), and 1 VGA Out 15-Pin D-SUB), Furuno's Multi Touch Monitor series gives you the ability to display Picture In Picture (PIP) and Picture By Picture (PBP). This allows you to clearly display your navigation situation on the main screen, while also keeping track of the news or your favorite sports team, when connected to an on-board TV/DVD player.

SUNLIGHT & NIGHT TIME VIEWABILITY
The marine environment provides one of the most challenging settings for electronics. Furuno's monitors not only meet the challenge, but exceed it! Whether it is a flybridge or an enclosed pilot house, these monitors perform flawlessly. Unlike most off-the-shelf multtouch monitors that have a max brightness of 250 cd/m2, our MU175T/195T/245T multi touch monitors have a brilliance of 1,000 cd/m2. That's 300% brighter than typical off-the-self monitors! Our monitors can also be fully dimmed, so your night vision is not affected by the gray glow that is commonly experienced with most off-the-shelf monitors

MADE TO WITHSTAND THE ELEMENTS
While monitors for many industrial and entertainment applications have to withstand heavy usage, marine displays face some of the toughest challenges. Condensation, salt water exposure, sunlight reflection, night vision, and overheating, are just some of the factors that marine displays face. These monitors are optically bonded, giving them much better sunlight viewability (reflection by the sun is reduced by up to 94%), as well as preventing condensation from forming

NO MORE POWER STRUGGLES
Powering your monitors should not be a struggle, which is why these monitors allow you to connect either AC or DC power. You can even connect both sources! When both power sources are connected, power will be sourced from the AC input. If the AC input is lost, there will be an uninterrupted switchover to the DC input.

Specifications

DISPLAY CHARACTERISTICS
Screen Size	19 inches, 5:4 Aspect Ratio*
Resolution	1280 x 1024
Contrast Ratio (typical)	1,000 : 1
Viewing Angle (typical)	+/- 89 deg (typical) (Up/Down/Left/Right)
Max Brightness (typical)	1,000 NITS Hi- Brite
INTERFACE
Device Port 1.2	1 port
DVI (DVI-D)	2 ports
Composite Video (NTSC/PAL)	2 ports (BNC)
VGA Out	1 15-Pin D-SUB
Supported Resolutions	VGA to SXGA
POWER SUPPLY
Input	115 & 230 VAC, 50/60Hz + 24 VDC
ENVIRONMENT (EN60529 test method)
Temperature	-15 degC to +55 degC
Waterproofing	IP66 ( front panel), IP22 (rear panel)

What's in the Box:

• 19 Touch Screen Assy
• DVI Video cable
• VGA Video cable
• VGA to DVI adapter
• USA Power Cable Assy
• EU Power Cable Assy
• 1.8m Type A USB Cable
• Flush mount bracket kit
• 2p Terminal Connector
• 5p Terminal Connector x 2
"
