FURUNO
PUMPLA11-12 12v TYPE1 Linear Drive Unit
- Manufacturer part #
- PUMPLA11-12
- UPC
- 611679326010
- Condition
- New
$2,566.95
Available for backorder
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Product details

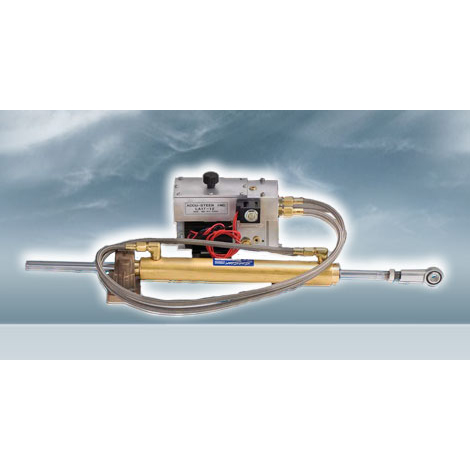

The Accusteer PUMPLA11-12 Linear Actuator is designed to interface an autopilot system with mechanical steering systems such as wire, cable or chain drives. This linear actuator consists of a hydraulic drive unit, steering cylinder, and interconnecting hoses.This unit is also available as the PUMPLA17-12 using a 1.75 in x 12 in RAM.
PUMPLA11 Specifications:
- Heavy-duty brass cylinder (2 in bore x 11 in stroke)
- 1.5 in x 9 in RAM
- Stainless steel braid covered hoses
- Compact and rugged drive unit
- Average Motor Current: 3-6 Amps ? PUMPLA11-12 (12VDC Motor)
- Cylinder Design: Balanced
- Max Cylinder Stroke and Swept Volume: 9 in. (23 cm) and 13.1 cubic in. (215 cc)
- Solenoid/Clutch Current Draw: 1.5 Amps (12V)/0.75 Amps (24V)
- Max Cylinder Thrust @ 500 psi: 785 lbs (356 kg)
- Hard Over Time (HOH): About 13 Seconds
- Maximum Rudder Torque (+/-35 deg. @ 8 in. Rudder Shaft to Tiller Bolt Distance): 6280 in. lbs. (710 Nm)
- Raymarine Equivalent Linear Drive: TYPE 1 (Recommended Maximum Boat Displacement = 22,000lbs (10,000kg))
- Simrad Equivalent Linear Drive: HLD350
Specifications
Heavy-duty brass cylinder (2" bore x 11" stroke)
1.5" x 9" RAM
Stainless steel braid covered hoses
Compact and rugged drive unit
Average Motor Current: 3-6 Amps – PUMPLA11-12 (12VDC Motor), 2-4 Amps – PUMPLA11-24 (24VDC Motor)
Cylinder Design: Balanced
Max Cylinder Stroke and Swept Volume: 9 in. (23 cm) and 13.1 cubic in. (215 cc)
Solenoid/Clutch Current Draw: 1.5 Amps (12V)/0.75 Amps (24V)
Max Cylinder Thrust @ 500 psi: 785 lbs (356 kg)
Hard Over Time (HOH): About 13 Seconds
Maximum Rudder Torque (+/-35 deg. @ 8 in. Rudder Shaft to Tiller Bolt Distance): 6280 in. lbs. (710 Nm)
Raymarine Equivalent Linear Drive: TYPE 1 (Recommended Maximum Boat Displacement = 22,000lbs (10,000kg))
Simrad Equivalent Linear Drive: HLD350
Shipping weight: 11 lb
