FURUNO

SS260 Thru-Hull Transducer - Stainless Steel - 1kW - 50/200 - No Plug

Manufacturer part #: 556TID-HDN
UPC: 611679310620
Condition: New

$1,199.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Free ground shipping (48 states)

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

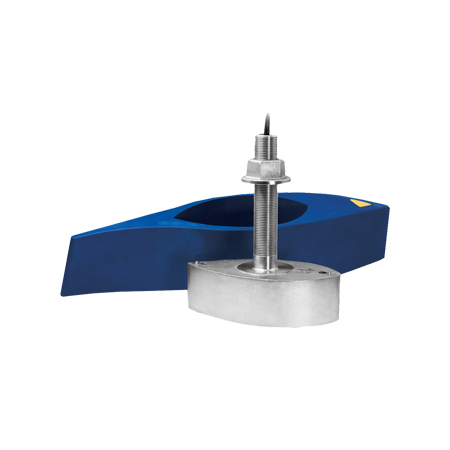

SS260 Thru-Hull Transducer - Stainless Steel - 1kW - 50/200 - No Plug

Airmar SS260 Housing Style Transducer. Stainless Steel Thru-Hull Transducer with Temp and Fairing Block, 1 kW (No Plug).

Features:

1,000 Watts Power
50/200 kHz, no Diplexer
20/6 degree Beam Angles
Stainless Steel Thru-Hull with Temperature
No Connector
High Speed Fairing Block included

Specifications:

Beam Angle: 20° and 6°
Housing Type: Stainless Steel
Power Rating: 1kW
Frequency: 50kHz and 200kHz
Install Type: Thru-Hull

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Specifications

Thru-Hull, Stainless Steel Housing, Fairing included
• Depth and Temperature
• 50/200 kHz
• 1,000 Watts
• 12 m (39’) Cable
• Broadband
• Separate 50 and 200 kHz ceramics
• Top performing 1 kW broadband transducer
gives you crystal clear imaging at all depths
• For use with sportfishing and commercial
fishing boats 11 m (35') and up with
fiberglass and wood hulls
• Deadrise angles up to 22º
• Broadband Ceramic Technology:
• Provides better image detail and resolution
• Distinguishes individual fish targets and fish tight
to the bottom
• Beam Width: 50 kHz—19° 200 kHz—6°
• Depth Range: 50 kHz—549m to 762m
(1800’ to 2500’) 200kHz—213m to 305m
(700’ to 1000’)

Shipping weight: 23.4 lb
