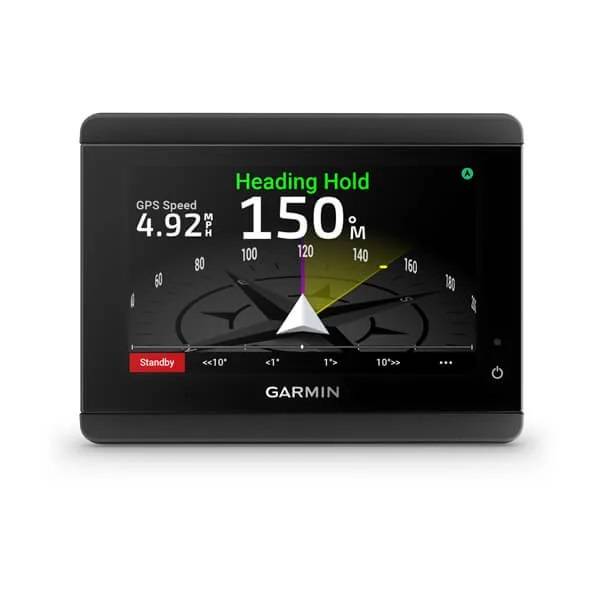

GHC50 Marine Autopilot Control Display

Garmin GHC™ 50 Marine Autopilot Instrument
Model: 010-02731-00

• A 5 in touchscreen interface with a bright display. Call it navigating with a simple touch.
• Sleek. That's the look you get with the instrument's edge-to-edge glass design.
• Share settings with your Garmin MFDs, and watch your integrated system come to life.
• From the Garmin Marine Network (GMN) to wireless connectivity, there are many ways to connect to your autopilot.
• Control your boat your way with wired or wireless remote-controlled options.

When you're ready to discover paradise, the GHC 50 autopilot instrument helps you navigate with ease - wherever the waters take you.

The bright 5 in WVGA touchscreen not only looks good; its anti-glare display makes navigation simple and hassle free.

With a premium industrial design and edge-to-edge glass display, the GHC 50 autopilot instrument aligns perfectly with your high-end GPSMAP® chartplotters, creating a stunning look for your helm.

The choice is yours - control your autopilot instrument via wire or a wireless remote for a navigation experience that works best for you.

If you have multiple compatible Garmin devices on your boat, you can share information among them for a more integrated marine system.

GHC 50 works with all GHP™ Reactor autopilots, select quatix® multisport marine smartwatches, the Garmin autopilot remote and GRID™ 20 remote.

If used as a stand-alone autopilot, wireless connectivity only provides software updates; use the Garmin Marine Network for sharing settings and other connected features.

Specifications

General
Dimensions without sun cover (H x W x D)	4.13 in x 5.51 in x 2.01 in
Dimensions with sun cover (H x W x D)	4.45 in x 5.67 in x 2.20 in
Weight	11.57 oz (328 g)
Display type	WVGA touchscreen
Display resolution	800 x 480 pixels
Water rating	IPX7
Mounting options	Flat or flush
Connections
NMEA 2000 ports	1
Garmin Marine Network ports	1
Wireless	ANT+® connectivity
Electrical
Power input	9 to 32 Vdc
Typical current draw at 12 Vdc	220 mA
Maximum current draw at 12 Vdc	400 mA
Maximum power usage at 10 Vdc	4.9 W

What's in the Box:

• GHC™ 50
• Black trim piece snap cover
• Protective cover
• Flush mount gasket and hardware
• Garmin Marine Network cable
• Garmin Marine Network adapter cable
• NMEA 2000® drop cable
• NMEA 2000 T-connectors and terminators
• Documentation
