GLS10 Sonar Module Replacement for LiveScope

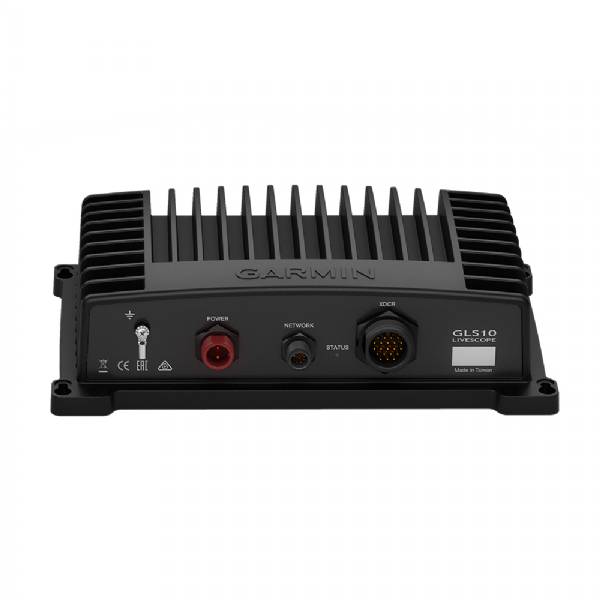

Garmin GLS10 Sonar Module

Model: 010-12954-00

The easy-to-install, networkable GLS 10 sonar black box allows you to see live, real-time scanning sonar. Add the LVS32 transducer model to see easy-to-interpret live scanning sonar images of structure, bait and fish swimming below and around your boat. And you can share sonar images seamlessly across multiple networked chartplotters.

Requires LVS32, not included

Specifications

Physical dimensions	9.6 in x 5.9 in x 2.6 in (24.5 x 14.9 x 6.5 cm)
Weight	4.3 lbs (2.0 kg)
Water rating	IPX7
Garmin Marine NetworkTM ports	1 (small connector)
Temperature range	Operating: -15 C to 70 C
Sonar Features & Specifications
Frequencies supported	530 - 1,100 kHz
Transmit power	500 W
Maximum depth	Down and Forward: 200 feet (61.0 m)
Electrical
Power input	10-32 V
Power usage	21 W typical, 58 W max
Fuse	7.5 A

What's in the Box:

• GLS 10 sonar module
• Power cable
• 2 meter Garmin marine network cable, small connector
• Network adapter cable
• Mounting hardware
• Documentation
