GARMIN

GNX™ Keypad

Manufacturer part #: 010-12255-00
UPC: 753759138202
Condition: New

$167.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

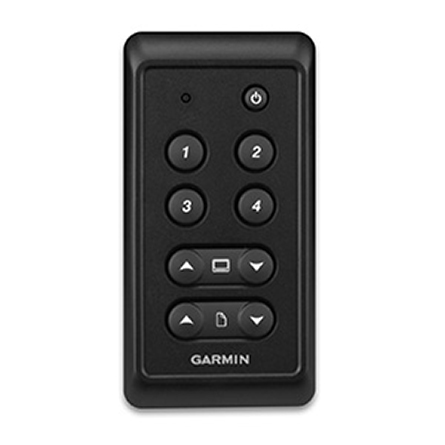

GNX™ Keypad

Control a compatible GNX instrument display from a distance with this push-button keypad interface which can be fixed-mounted near the helm. It features 4 buttons dedicated to preset configurations. Plus, you can adjust the background lighting of all displays with the touch of a button.

Specifications:

Physical dimensions: 59 x 115 x 15 mm (2.32'' x 4.53'' x .59'')
Weight: 95 g (3.4 oz)
Water rating: IPX7
Temperature range: From 5x to 158xF (from -15x to 70xC)
Voltage range: 9-16 V (from NMEA 2000)
Power consumption: 0.2 W
Mounting options: Flush
NMEA 2000® certified: Yes
NMEA 0183 compatible: No
Auto-on: Yes

Compatible Devices:

GNX™ 120
GNX™ 130

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications

Physical dimensions: 59 x 115 x 15 mm (2.32'' x 4.53'' x .59'')
Weight: 95 g (3.4 oz)
Water rating: IPX7
Temperature range: From 5° to 158°F (from -15° to 70°C)
Voltage range: 9-16 V (from NMEA 2000)
Power consumption: 0.2 W
Mounting options: Flush
NMEA 2000® certified: Yes
NMEA 0183 compatible: No
Auto-on: Yes

Shipping weight: 0.9 lb
