GARMIN
GRID™ 20 - Horizontal
- Manufacturer part #
- 010-02011-01
- UPC
- 753759204952
- Condition
- New
$237.95
Estimated to ship by Monday, October 19.

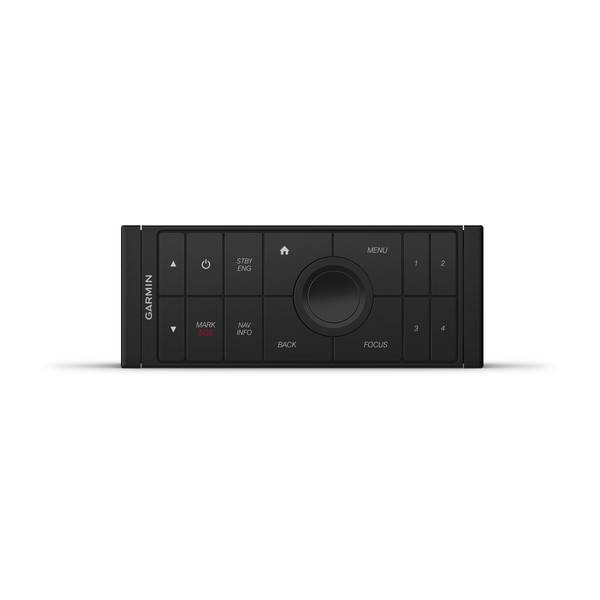

GRID™ 20 - Horizontal
Sit Back and Take Control
- Provides intuitive, easy-to-use remote access and control of your entire Garmin marine system
- 360-degree, all-in-one joystick with a rotary knob and push-to-select button
- Enables easy chartplotter menu/setting navigation and fine control, even in the worst conditions
- 4 favorite keys can be designated to restore your system to a previously saved configuration
- Allows wired (NMEA 2000) or wireless installation options
You don’t have to stand for hours at the helm. The easy-to-use GRID 20 remote input device provides intuitive remote access and control of your entire Garmin marine system. It features a 360-degree joystick with a rotary knob and push-to-select button for easy chartplotter menu/setting navigation and fine control, even in the worst conditions. You can designate 4 favorite keys to restore your system to a previously saved configuration. There are also a variety of hard keys for quick access to important functions, including left and right screen switches, autopilot standby/engage and more. For peace of mind, there’s also a dedicated SOS key. Wired or wireless installation and vertical or horizontal options allow for a plug-and-play solution that is tailored to your marine system. Its small footprint makes it convenient to integrate into a busy helm between displays — or even into the arm of the captain’s chair.
In The Box:
- GRID 20
- Mounting hardware
- Power cable
- Documentation
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications
- Dimensions (W×H×D): 5.6” x 2.2” x 2.7” (14.1 x 5.6 x 6.8 cm)
- Weight: 6.3 oz (179 g)
- Temperature range: From 5° to 158°F (from -15° to 70°C)
- Material: Fully gasketed, high-impact plastic
- Water rating: IPX7
- Compass-safe distance: 4.5” (114 mm)
- Power input:
- NMEA 2000
- -or-
- Wired power (with included power cable):
- Input power: 9-32 V dc
- Fuse: 1.0 Amp, Fast Blow
- Maximum power usage at 9 V dc: 1.5 W
- Typical current draw at 12 V dc: 40 mA
- Maximum current draw at 12 V dc: 120 mA
- -or-
- 2x AA battery powered (not included)
Package contents
- GRID 20
- Mounting hardware
- Power cable
- Documentation
Shipping weight: 1.6 lb
