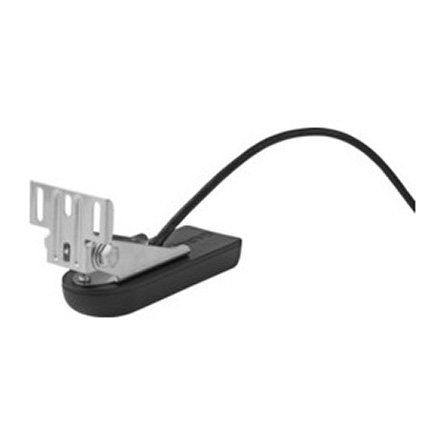

GT22HW-TM Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/CHIRP DownVü - 455/800kHz, 500W, 8-Pin
- Manufacturer part #
- 010-12403-00
- UPC
- 753759148584
- Condition
- New
$159.95
In stock
Estimated to ship by Monday, October 19.
GT22HW-TM Plastic, TM or Trolling Motor Transducer, High Wide CHIRP/CHIRP DownVü - 455/800kHz, 500W, 8-Pin
GT22HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownVü scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP DownVü (455/800 kHz) element has a power rating of 500 W.
GT22HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.
GT22HW-TM transducer is perfect for freshwater fishermen who want CHIRP traditional sonar and CHIRP DownVü scanning sonar. This transom or trolling motor mounted transducer consistently displays clear and crisp fish arches with superior target separation as well as clear definition of structure below the boat.
The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. The CHIRP DownVü (455/800 kHz) element has a power rating of 500 W.
GT22HW-TM is ideal for mounting to a trolling motor due to its compact size. For installation, follow the included instructions carefully to avoid damaging your boat.
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications
Weight: 0.94 lb (0.43 kg)
Cable length: 20 ft
Number of pins on connector: 8
Dimensions:
Transducer: 155 x 52 x 26 mm
Frequency:
Traditional: CHIRP 150-240 kHz
DownVü: CHIRP 425-485 kHz and CHIRP 790-850 kHz
Transmit power:
Traditional: 250 W
DownVü: 500 W
Max Depth:
Traditional: 800 ft
DownVü: 500 ft
Beam Width (°) LF/HF (-3dB):
Traditional: 24/16
DownVü:
2.0x50@455
1.0x30@800
Read water temperature: Yes
Compatibility:
1 - Requires 8-pin transducer to 4-pin sounder adapter cable (010-11947-00)
2 - Requires 12-pin transducer to dual 4-pin sounder adapter cable (010-12234-05)
3 - Requires 8-pin transducer to 12-pin sounder adapter cable (010-12122-10)
4 - Requires 4-pin transducer to 8-pin sounder adapter cable (010-11948-00)
5 - GT20-TM 4-pin version(010-12087-00)
6 - GT20-TM 8-pin version(010-12087-01)
Comparison:
²-When used with an echoMAP CHIRP chartplotter/sonar combo device.
Cable length: 20 ft
Number of pins on connector: 8
Dimensions:
Transducer: 155 x 52 x 26 mm
Frequency:
Traditional: CHIRP 150-240 kHz
DownVü: CHIRP 425-485 kHz and CHIRP 790-850 kHz
Transmit power:
Traditional: 250 W
DownVü: 500 W
Max Depth:
Traditional: 800 ft
DownVü: 500 ft
Beam Width (°) LF/HF (-3dB):
Traditional: 24/16
DownVü:
2.0x50@455
1.0x30@800
Read water temperature: Yes
Compatibility:
| GT.. | 8HW-TM | 8HW-IF | 15M-IH | 20-TM | 22HW-TM | 23M-TM | 23M-TH | 52HW-TM |
| STRIKER 4dv, 5dv and 7dv fishfinders | 1 | • | 1 | 5 | 1 | 1 | 1 | |
| STRIKER 7sv fishfinder | 1 | • | 1 | 5 | 1 | 1 | 1 | 2 |
| echoMAP CHIRP 4Xdv and 5Xdv combo series | 1 | • | 1 | 5 | 1 | 1 | 1 | |
| echoMAP CHIRP 7Xdv combo series | • | 4 | • | 6 | • | • | • | |
| echoMAP CHIRP 7Xsv and 9Xsv combo series | 3 | 3 | 3,6 | 3 | 3 | 3 | • | |
| GPSMAP 8X0xs and 10X0xs combo series | • | 4 | • | 6 | • | • | • | |
| GPSMAP 5X7xs and 7X1xs combo series | • | 4 | • | 6 | • | • | • | |
| GPSMAP 7400xsv and 7600xsv combo series | • | 4 | • | 6 | • | • | • | • |
| GSD™ 25 digital sonar | • | 4 | • | 6 | • | • | • | • |
2 - Requires 12-pin transducer to dual 4-pin sounder adapter cable (010-12234-05)
3 - Requires 8-pin transducer to 12-pin sounder adapter cable (010-12122-10)
4 - Requires 4-pin transducer to 8-pin sounder adapter cable (010-11948-00)
5 - GT20-TM 4-pin version(010-12087-00)
6 - GT20-TM 8-pin version(010-12087-01)
Comparison:
| DownVü/SideVü Capability | Traditional Sonar | ||||||||
| CHIRP DV/SV | Freq. (kHz) | Pwr (W RMS) | Max. Depth/ Range | CHIRP | Freq. (kHz) | Power, Depth | Water Temp Snsr | Max. Hull Dead rise | |
| GT8HW-TM (8-pin) Transom/ trolling motor | N/A | N/A | N/A | N/A | Yes | High wide CHIRP 150-240 | 250 W, 800 ft | Yes | N/A |
| GT8HW-IF (4-pin) Ice fishing | N/A | N/A | N/A | N/A | Yes | High wide CHIRP 150- 240 | 250 W, 800 ft | No | N/A |
| GT15M-IH (8-pin) In-hull | N/A | N/A | N/A | N/A | Yes | Mid- band CHIRP 85- 165 | 600 W, 1900 ft | No | 25° |
| GT22HW-TM (8-pin) Transom/ trolling motor | DV | 455/ 800 | 500 | 500 feet down | Yes | High wide CHIRP 150- 240 | 250 W, 800 ft | Yes | N/A |
| GT23M-TM (8-pin) Transom | DV | 260/ 455 | 500 | 1000 feet down | Yes | Mid- band CHIRP 80- 160 | 600 W, 1800 ft | Yes | N/A |
| GT23M-TH (8-pin) Thru-hull | DV | 260/ 455 | 500 | 1000 ft down | Yes | Mid- band CHIRP 80- 160 | 600 W, 1800 ft | Yes | 25° |
| GT52HW-TM (12-pin) Transom/ trolling motor | DV & SV | 455/ 800 | 500 each 1500 total | 500 feet down, 500 feet left & right | Yes | High wide CHIRP 150- 240 | 250 W, 800 ft | Yes | N/A |
| GT20-TM (8/4-pin) Transom/ trolling motor | DV² | 455/ 800 | 500 | 750 ft down | Yes² | 77/ 200 kHz | 500 W, 1900 ft | Yes | N/A |
Package contents
- GT22HW-TM transducer
- Transom mount
- Trolling motor mount
- Mounting hardware
- Documentation
Shipping weight: 2 lb
