GARMIN
GT30-THP Thru Hull Pair Scanning Transducer
- Manufacturer part #
- 010-01961-11
- UPC
- 753759128012
- Condition
- New
$1,109.95
Estimated to ship by Monday, October 19.
Free ground shipping (48 states)

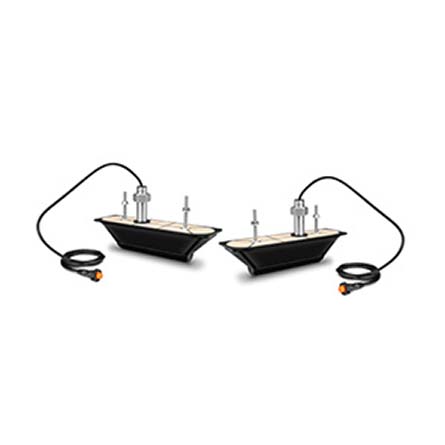

Garmin GT30-THP Thru Hull Pair
Scanning Transducer
Model: 010-01961-11Perfect for the shallow water fisherman who want CHIRP ClearVü and CHIRP SideVü scanning sonar with stainless steel stems, this pair of 12-pin thru-hull transducers consistently displays clear definition of objects, structure and fish below and to each side of the boat.
These transducers with built-in fast response temperature sensors have a power rating of 500 W per element (1,500 W total); a depth of 750 ft (ClearVü) and 500 ft left and right (SideVü); an operating frequency of CHIRP 455/800 kHz1; for hull deadrises from 5 degrees to 25 degrees. Pair them with your GCVTM 10 scanning sonar module.
Includes 12-pin port and starboard transducers with stainless steel stems, isolation bushings, fairing blocks, Y-cable, mounting hardware and installation instructions. Follow the instructions carefully to avoid damaging your boat.
Specifications| General | |
| Frequency | |
| ClearVü/SideVü CHIRP | 455 kHz (425-485 kHz) & 800 kHz (790-850 kHz) |
| Power | |
| ClearVü/SideVü | 500 W |
| Beamwidth | |
| ClearVü | 1.4 degx53 deg @ 455 kHz and 0.8 degx30 deg @ 800 kHz |
| SideVü | 1.1 degx53 deg @ 455 kHZ and 0.7 degx30 deg @ 800 kHz |
| Maximum depth | |
| ClearVü | 750 ft |
| SideVü | 500 ft. |
| Depth/Speed/Temperature | Depth and Temperature |
| Number of pins | 12-pin |
| Cable length | 5 ft. + 30 ft. y-extension cable |
| Supported deadrise/Transom angles | Up to 25 deg deadrise |
Specifications
Stainless Steel
Thru-hull
DownVü/SideVü 500W
CHIRP 445 to 475 kHz and 805 to 840 kHz.
Deadrises Less Than 5°
12-pin
Shipping weight: 10 lb
