GT56UHD-TR Transducer Trolling Motor for 63in Force Kraken

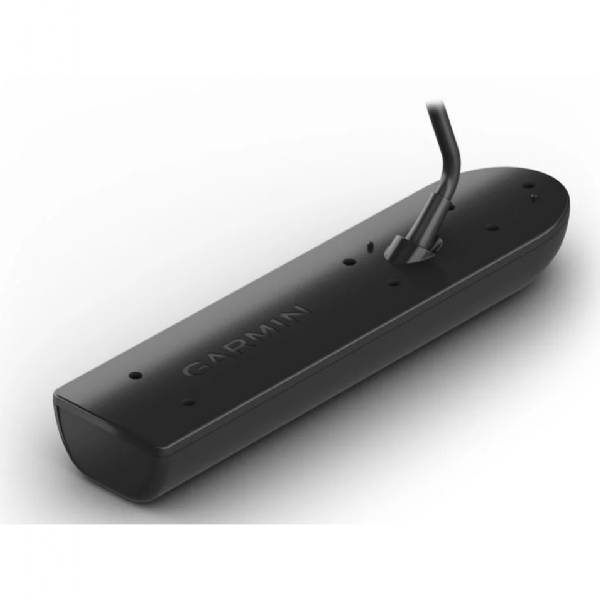

Garmin GT56UHD-TR Ultra High-Definition Transducer for 63 in Force Kraken Trolling Motors
Model: 010-02732-01

• Trolling motor transducer for compatible Force® Kraken trolling motors with a 63 in shaft
• Ultra High-Definition ClearVü™ and SideVü™ scanning sonar at 455 kHz, 800 kHz and 1000 kHz
• High-wide traditional CHIRP sonar, 150-240 kHz
• Provides depth and water temperature data
• 12-pin connector
• Cable length is sized for black Force Kraken models with a factory-installed transducer; white models require a separate extension cable and mount

Use this transducer on your compatible Force® Kraken trolling motor. Please note, the cable length is designed for Force Kraken trolling motors with a factory-installed transducer (black models). White 48 in, 63 in and 75 in models require a separate extension cable purchase and a trolling motor mount or nose cone mount for the transducer. White 90 in models should use a GT56UHD-TM and transducer replacement kit.

Specifications

Transducer frequency	Traditional high-wide CHIRP (150-240 kHz); ClearVü/SideVü 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100 kHz)
Transducer power	Traditional 350 W; ClearVü/SideVü 500 W
Beamwidth	Traditional CHIRP: 24 to 16 deg; ClearVü and SideVü: 0.52 x 52 deg at 1000 kHz, 0.64 x 35 deg at 800 kHz, 1.1 x 52 deg at 455 kHz
Maximum depth	Traditional: 800 ft freshwater; ClearVü: 400 ft; SideVü: 500 ft
Cable length	63 in
Depth and temperature	Yes
Number of pins	12

What's in the Box:

• GT56UHD-TR transducer
• Transducer replacement kit
• Mounting hardware
• Documentation
