GARMIN

GT8HW-TM Transom Mount

Manufacturer part #: 010-12401-00
UPC: 753759148553
Condition: New

$151.95

In stock

Estimated to ship by Monday, October 19.

Garmin GT8HW-TM Plastic, Transom or Trolling Motor Mount Transducer, High Wide CHIRP (150-240 kHz, 250W) (8-pin)

Model: 010-12401-00
UPC: 753759148553

GT8HW-TM transducer is perfect for shallow water fishermen who want clear bottom definition under the boat as well as crisp, clear and wide fish arches with excellent target separation. The wider beam width - up to 24 degree beam angle - provides a larger coverage area in the water.

The 8-pin transducer features high wide band CHIRP traditional sonar (150-240 kHz) and has a power rating of 250 W. It can be mounted on the transom or a trolling motor. Follow the included installation instructions carefully to avoid damaging your boat.

Specifications

Frequency	CHIRP 145-240 kHz
Transmit power	250 W
Max Depth	800 feet
Beam Width ( deg) LF/HF (-3dB):	24/16
Read water Temperature	Yes
Connect	8 pin
Cable Length	20 feet

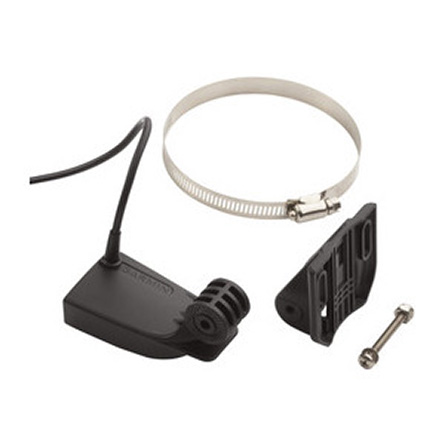

What's in the Box:

GT8HW-TM transducer
Transom mount
Trolling motor mount
Mounting hardware
Documentation

Specifications

Weight: 0.63 lb (0.29 kg)
Cable length: 20 ft
Number of pins on connector: 8
Dimensions:
          Transducer: 88 x 45 x 56 mm
Frequency:
          Traditional: CHIRP 145-240 kHz
Transmit power:
          Traditional: 250 W
Max Depth:
          Traditional: 800 ft
Beam Width (°) LF/HF (-3dB):
          Traditional: 24/16
Read water temperature: Yes

Compatibility:

GT..	8HW-TM	8HW-IF	15M-IH	20-TM	22HW-TM	23M-TM	23M-TH	52HW-TM
STRIKER 4dv, 5dv and 7dv fishfinders	1	•	1	5	1	1	1
STRIKER 7sv fishfinder	1	•	1	5	1	1	1	2
echoMAP CHIRP 4Xdv and 5Xdv combo series	1	•	1	5	1	1	1
echoMAP CHIRP 7Xdv combo series	•	4	•	6	•	•	•
echoMAP CHIRP 7Xsv and 9Xsv combo series	3		3	3,6	3	3	3	•
GPSMAP 8X0xs and 10X0xs combo series	•	4	•	6	•	•	•
GPSMAP 5X7xs and 7X1xs combo series	•	4	•	6	•	•	•
GPSMAP 7400xsv and 7600xsv combo series	•	4	•	6	•	•	•	•
GSD™ 25 digital sonar	•	4	•	6	•	•	•	•

1 - Requires 8-pin transducer to 4-pin sounder adapter cable (010-11947-00)
2 - Requires 12-pin transducer to dual 4-pin sounder adapter cable (010-12234-05)
3 - Requires 8-pin transducer to 12-pin sounder adapter cable (010-12122-10)
4 - Requires 4-pin transducer to 8-pin sounder adapter cable (010-11948-00)
5 - GT20-TM 4-pin version(010-12087-00)
6 - GT20-TM 8-pin version(010-12087-01)

Comparison:

	DownVü/SideVü Capability				Traditional Sonar
	CHIRP DV/SV	Freq. (kHz)	Pwr (W RMS)	Max. Depth/ Range	CHIRP	Freq. (kHz)	Power, Depth	Water Temp Snsr	Max. Hull Dead rise
GT8HW-TM (8-pin) Transom/ trolling motor	N/A	N/A	N/A	N/A	Yes	High wide CHIRP 150-240	250 W, 800 ft	Yes	N/A
GT8HW-IF (4-pin) Ice fishing	N/A	N/A	N/A	N/A	Yes	High wide CHIRP 150- 240	250 W, 800 ft	No	N/A
GT15M-IH (8-pin) In-hull	N/A	N/A	N/A	N/A	Yes	Mid- band CHIRP 85- 165	600 W, 1900 ft	No	25°
GT22HW-TM (8-pin) Transom/ trolling motor	DV	455/ 800	500	500 feet down	Yes	High wide CHIRP 150- 240	250 W, 800 ft	Yes	N/A
GT23M-TM (8-pin) Transom	DV	260/ 455	500	1000 feet down	Yes	Mid- band CHIRP 80- 160	600 W, 1800 ft	Yes	N/A
GT23M-TH (8-pin) Thru-hull	DV	260/ 455	500	1000 ft down	Yes	Mid- band CHIRP 80- 160	600 W, 1800 ft	Yes	25°
GT52HW-TM (12-pin) Transom/ trolling motor	DV & SV	455/ 800	500 each 1500 total	500 feet down, 500 feet left & right	Yes	High wide CHIRP 150- 240	250 W, 800 ft	Yes	N/A
GT20-TM (8/4-pin) Transom/ trolling motor	DV²	455/ 800	500	750 ft down	Yes²	77/ 200 kHz	500 W, 1900 ft	Yes	N/A

²-When used with an echoMAP CHIRP chartplotter/sonar combo device.

Package contents

GT8HW-TM transducer
Transom mount
Trolling motor mount
Mounting hardware
Documentation

Shipping weight: 1.2 lb
