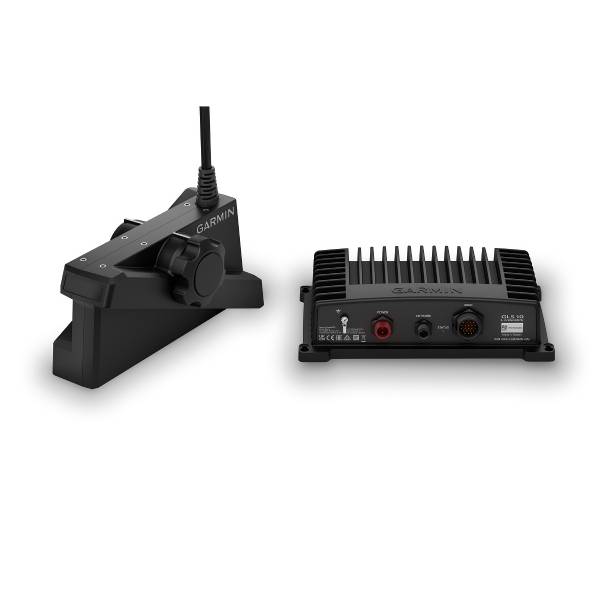

Panoptix LiveScope XR With LVS62 Transducer and GLS 10 Sonar Black Box

Garmin LiveScope™ XR System with GLS 10™ and LVS62 Transducer
Model: 010-02719-00

• Explore the deep with an extended range up to 500 feet in freshwater and 350 feet in saltwater.
• Find fish circling your boat with clear views close around your hull.
• Get maximum contrast and clarity in your images with vivid color palettes.
• Don't miss a thing with supported Forward, Down and Perspective modes plus necessary mount.

You didn't think it could get better, but it did with the extended range of the LiveScope XR System. It's the latest in LiveScope technology, now for coastal and open-water fishing.

The Reverse Range Offset feature uses more of the screen to display fish and structure up to 500 feet in freshwater and 350 feet in saltwater.

The Compress Range feature gives you a clear view close to your boat while keeping an eye on targets farther away.

Real-time sonar ensures that your live images are as accurate as possible.

A built-in stabilization system keeps the sonar image on your compatible chartplotter steady, even in rough conditions.

Choose from seven vivid color options - including aqua, Caribbean, lava and more - to see fish and structure in maximum contrast and clarity.

Now scout even farther ahead of your boat to see what's happening in real time.

Explore live views of the activity deeper beneath your boat.

See under the water with a view from your perspective above the water.

Specifications

General
Dimensions	GLS 10 sonar black box: 9.7 in x 5.9 in x 2.6 in (24.5 x 14.9 x 6.5 cm); LVS62 transducer: 8.20 in x 3.98 in x 2.76 in (20.8 x 10.1 x 7.0 cm)
Weight	GLS 10 sonar black box: 4.3 lbs (2.0 kg); LVS62 transducer with cable: 3.92 lbs (1.78 kg); LVS62 transducer without cable: 2.66 lbs (1.21 kg)
Water rating	IPX7
Temperature range	GLS 10 black box: -15° C to 70° C; LVS62 transducer: 0° C to 40° C
Transducer cable length	20 ft
Transducer number of pins	21
Compass-safe distance	7 in (0.18 m)
Sonar
Sonar type	Live
Frequency	265 to 550 kHz
Transmit power	500 W
Transducer beamwidth	20° x 135°
Maximum depth	Freshwater, down and forward: 500 ft (152.0 m); saltwater, down and forward: 350 ft (106.0 m)
Target separation at 100 ft	22 in
Perspective mode mount	Included
Electrical
Power input	10 to 32 V
Power usage	21 W typical, 58 W maximum
Fuse	7.5 A
Networking and Connections
Garmin Marine Network ports	1 (small connector)

What's in the Box:

• GLS 10 sonar black box
• XR LVS62 transducer
• Perspective mount (XR LVS62 transducer only)
• Trolling motor barrel mount
• Shaft mount
• Power cable
• 2 meter Garmin Marine Network cable (small connector)
• Network adapter cable
• Documentation
