GARMIN

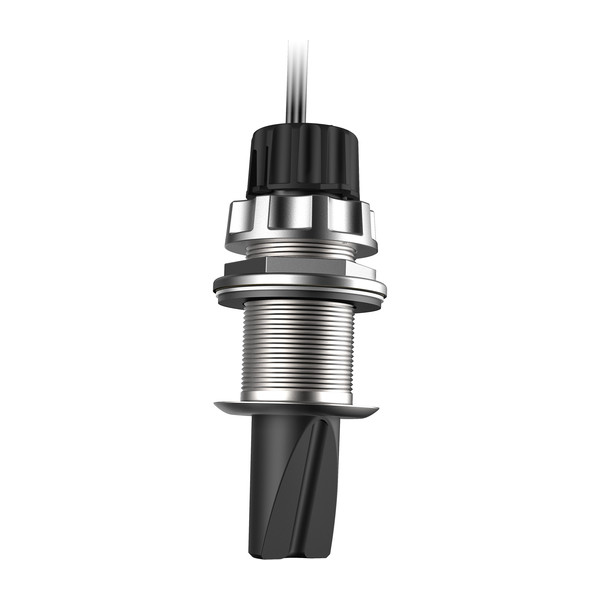

Panoptix PS51-TH Frontvu Transducer
- Manufacturer part #
- 010-01753-00
- UPC
- 753759170912
- Condition
- New
$1,599.99
Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.
Free ground shipping (48 states)
Product details
Garmin PanoptixTM PS51-TH Premium FrontVü Forward-looking Sonar
Model: 010-01753-00UPC: 753759170912
- Premium FrontVü forward-looking sonar helps you avoid running aground1
- Narrow beam, forward-looking sonar that focuses on the bottom in front of your boat
- Displays the bottom ahead of your boat in real time
- Displays bottom up to 300 feet ahead
- Delivers nearly instant feedback to give you more time to react
The Panoptix multibeam thru-hull transducer with premium FrontVü forward-looking sonar helps you avoid running aground1 by displaying the bottom ahead of your boat in real time on your chartplotter.
Panoptix FrontVü sonar displays bottom up to 300 feet ahead of the boat (at 8 to 10 times the current depth) and delivers nearly instant feedback to give you more time to react. You can be more confident when navigating unfamiliar water because Panoptix FrontVü has a narrow beam, forward-looking sonar (20 degrees). This allows you to focus on the bottom in front of your boat and not be confused with what is off to each side. It also includes an AHRS sensor for motion stabilization that allows you to see what is in front of your boat even in rough water conditions. And all the FrontVü forward-looking sonar image data can be easily shared with other chartplotters across the Garmin Marine Network.
Panoptix PS51-TH features a standard 50.88 mm (2-inch) stainless steel thru-hull mount. Displays depth and temperature data, and is compatible with all Panoptix capable Garmin chartplotters.
1The ability to effectively avoid running aground with FrontVü sonar decreases as speed rises above 8 knots.
Specifications| Mounting options | Thru-hull |
| Power consumption | Power consumption: <1.2A @ 12V |
| Voltage range | 10-35vDC |
| Frequencies supported | 417 kHz |
| Maximum range | 8-10x the current depth, up to 300 ft |
| Beam shape | |
| LiveVü Forward | 20 deg x 90 deg |
| FrontVü | 20 deg x 90 deg |
What's in the Box:
- Panoptix PS51-TH forward thru-hull transducer
- Mounting hardware
- Fairing block
- Blanking plug
- Documenatation
Specifications
- Weight:
- Transducer only: 1.54 lb (0.7 kg)
- Thru-hull mounting hardware: 1.76 lb (0.8 kg)
- Temperature Range:
- Operating: 32°F to 122°F (0°C to 50°C)
- Non-operating: -40°F to 158°F (-40°C to 70°C)
- Mounting options: Thru-hull
- Power consumption: <1.2A @ 12V
- Voltage range: 10-35 Vdc
- Frequencies supported: 417 kHz
- Maximum range: 8-10x the current depth, up to 300 ft
- LiveVü Forward
- Beam shape: 20° x 90°
- FrontVü
- Beam shape: 20° x 90°
Series Comparison
| Panoptix | PS21-TR | PS21-TM | PS30 | PS31 | PS51-TH | PS60 |
| RealVü 3-D Down | • | • | ||||
| RealVü 3-D Historical | • | • | ||||
| LiveVü Down | • | • | ||||
| RealVü 3-D Forward | • | |||||
| LiveVü Forward | • | • | • | • | ||
| FrontVü Forward | • | • | • | |||
| Garmin Marine Network compatible | • | • | • | • | • | • |
| Independent power connection Voltage range: 10-35 V | • | • | • | • | • | • |
| Transom mount included | • | • | •2 | |||
| Trolling motor mount included Mounts to shaft or barrel of trolling motor | • | • | ||||
| Thru-hull mount included | • | • |
Package contents
- Panoptix PS51-TH forward thru-hull transducer
- Mounting hardware
- Fairing block
- Blanking plug
- Documenatation
Shipping weight: 3.7 lb
