GARMIN
PILOT REACTOR 40 SBW GENERIC W/
- Manufacturer part #
- 010-00705-86
- UPC
- 753759189433
- Condition
- New
$2,146.95
In stock
Estimated to ship by Tuesday, October 20.
Free ground shipping (48 states)
Product details
Specifications
CCU Specifications
- Dimensions: 3 19/32 in. diameter (91.4 mm)
- Weight: 5.6 oz. (159 g)
- Temperature range: From 5°F to 131°F (from -15°C to 55°C)
- Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards
- CCU cable length: 9.5 ft. (3 m)
- NMEA 2000 power input: 9-16V
- NMEA 2000 LEN: 3 (150 mA)
Buzzer/Alarm Specifications
- Dimensions (L × Diameter): 29/32 in. × 1 in. (23 mm × 25 mm)
- Weight: 2.4 oz. (68 g)
- Temperature range: from 5°F to 131°F (from -15°C to 55°C)
- Cable length: 10 ft. (3.0 m)

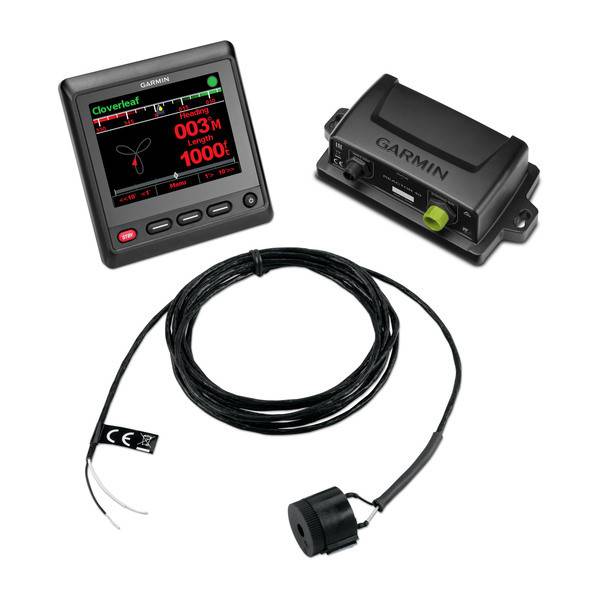

Package contents
- Reactor 40 CCU (Course Computer Unit)
- GHC™ 20 helm control display
- CCU cable
- Buzzer
- NMEA 2000® drop cables (2 meters)
- NMEA 2000 power cable
- NMEA 2000 T-connectors
- Male and female terminators
- Documentation
Shipping weight: 4.91 lb · Package dimensions: 11.3 × 8.7 × 8.7 in
