Spectra LC102 LED Control Module 1 Output

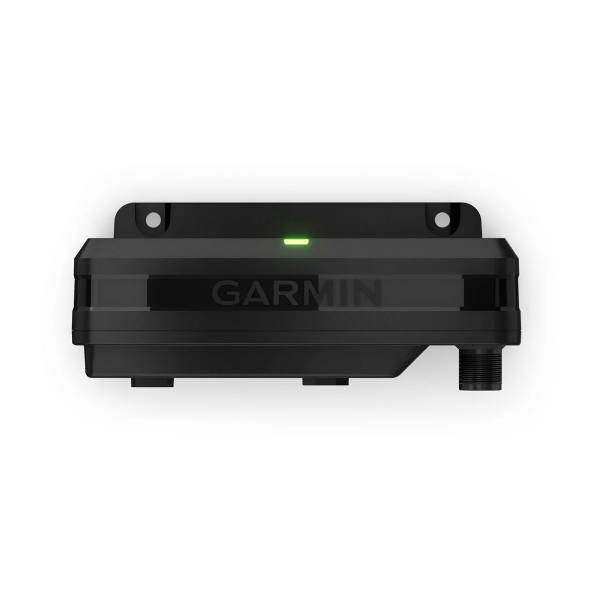

Garmin SpectraTM LC102 LED Control Module

Model: 010-02829-00

Control LED lights on your boat from your compatible chartplotter or smartphone with the Garmin Spectra light control module (lights not included). Assign and control different light groups for cup holders, speakers, strip or courtesy lights, and more to create your own vibe.

From bow to stern and everything in between, this module lets you control and set up different light groups and scenes.

Control lights over the NMEA 2000(R) network with your compatible chartplotter or with the ActiveCaptain(R) app on your compatible smartphone.

See the beat by syncing the LED lights to the music track with the audio sync feature.

Control LED lighting on Fusion and JL audio boat speakers and subwoofers plus wake tower speakers (sold separately).

Add more lights after the initial install with a scalable system.

Built to withstand the abuse of life on the water (in accordance with IP66/IP67 ratings)

Specifications

General
Unit dimensions (WxHxD)	4.45 x 2.05 in x 1.85 in (113 x 52 x 47 mm)
Weight	2.93 oz (83 g)
Water rating	IP66/IP67
Operating temperature range	32 deg to 122 deg F (0 deg to 50 deg C)
Compass-safe distance	7.87 in (20 cm)
Warranty	2 years
Electrical
Input voltage	10.8 to 16 V (12 V system)
