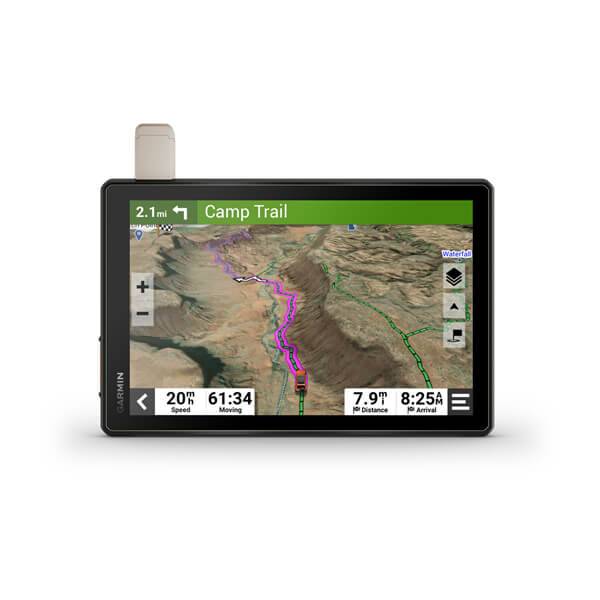

TREAD XL - OVERLAND EDITION

General

DIMENSION 9.9"W x 7.8"H x 1.2"D (25.2 x 19.9 x 3.1 cm)

DISPLAY SIZE 8.5"W x 5.3"H (21.7 cm x 13.6 cm); 10.1" diagonal (25.7 cm)

DISPLAY RESOLUTION 1280 x 800 pixels

DISPLAY TYPE multi-touch, glass, high brightness HD color TFT with white backlight

DUAL-ORIENTATION DISPLAY

WEIGHT 32.8 oz (930 g)

BATTERY TYPE rechargeable lithium-ion

BATTERY LIFE Up to 6 hours at 50% backlight, Up to 1 hour at 100% backlight

WATERPROOF IPX7

DROP RATING MIL-STD-810

DUST RATING IP6X

MAGNETIC MOUNT locking magnet-assisted mount

1.5" BALL ADAPTER WITH AMPS PLATE

Maps & Memory

PRELOADED STREET MAPS

HIGH DEFINITION 3D TERRAIN

DATA CARDS microSD™ card (not included)

3D TERRAIN

INTERNAL STORAGE 64 GB

ABILITY TO ADD MAPS

EXTERNAL MEMORY STORAGE yes (256 GB max microSD™ card)

INCLUDES MAP UPDATES

DOWNLOADABLE SATELLITE IMAGERY yes (BirdsEye)

Sensors

GPS

GALILEO

10 HZ MULTI-GNSS POSITIONING

BAROMETRIC ALTIMETER

COMPASS

Outdoor Recreation

POINT-TO-POINT NAVIGATION

PRELOADED TOPOGRAPHICAL MAPS

PRELOADED US PUBLIC LAND BOUNDARIES

PRELOADED PRIVATE LAND PARCEL MAPS yes (parcels greater than 4 acres)

PRELOADED USFS ROADS AND TRAILS, INCLUDING MOTOR-VEHICLE-USE-MAPS FOR MOTORCYCLE, ATV, SXS AND FULL-SIZE 4X4

NAVIGATE-A-TRACK NAVIGATION

TURN-BY-TURN TRAIL NAVIGATION

Navigation Features

GARMIN REAL DIRECTIONS™ LANDMARK GUIDANCE

TRIPADVISOR® TRAVELER RATINGS

ROUTE SHAPING THROUGH PREFERRED CITIES/STREETS

INCLUDES TRAFFIC yes (with Garmin Tread app)

LANE ASSIST WITH JUNCTION VIEW (DISPLAYS JUNCTION SIGNS)

SPEED LIMIT INDICATOR (DISPLAYS SPEED LIMIT FOR MOST MAJOR ROADS IN THE U.S. AND EUROPE)

DRIVER ALERTS FOR SHARP CURVES, SCHOOL ZONES, RED LIGHT AND SPEED CAMERA WARNINGS AND MORE

Advanced Features

SMART NOTIFICATIONS VIA APP

WI-FI® MAP AND SOFTWARE UPDATES

ACCESS TO LIVE SERVICES VIA APP (TRAFFIC, WEATHER, ETC.)

Motorcycle Features

GLOVE-FRIENDLY TOUCHSCREEN

CONTROL MUSIC AND MEDIA FROM SMARTPHONE OR MP3 PLAYER

SUNLIGHT READABLE AND WEATHER RESISTANT

GARMIN ADVENTUROUS ROUTING™

MOTORCYCLE OR POWERSPORTS SPECIFIC POINTS OF INTEREST FOR CYCLE REPAIR SERVICES, DEALERS AND MORE

ELEVATION PROFILE

ROUND TRIP ROUTING

SERVICE HISTORY LOG

CUSTOM MAP SUPPORT

TOPO MAP SUPPORT

RV Features

SPECIALIZED ROUTING FOR THE SIZE AND WEIGHT OF YOUR VEHICLE

RV PARKS & SERVICES DIRECTORY

ROAD ELEVATIONS

SPEED LIMIT CHANGES

EASY ROUTE PLANNER WITH GPX FILE SHARING

Adventure Features

BUILT-IN INREACH® TECHNOLOGY (REQUIRES ACTIVE SUBSCRIPTION; SUBJECT TO REGULATIONS OR PROHIBITIONS IN SOME JURISDICTIONS)

PAIR WITH GARMIN POWERSWITCH™ DIGITAL SWITCH BOX

COMPATIBLE WITH GROUP RIDE RADIO

COMPATIBLE WITH EXTERNAL GPS ANTENNA WITH MOUNT

COMPATIBLE WITH EXTERNAL INREACH® SATELLITE ANTENNA

GROUP RIDE MOBILE yes (with Garmin Tread app)

TRACK RECORDER (BREADCRUMBS)

IOVERLANDER™ POINTS OF INTEREST

ULTIMATE PUBLIC CAMPGROUNDS

PITCH AND ROLL GAUGES

BIRDSEYE SATELLITE IMAGERY (DOWNLOAD VIA WI-FI)

Outdoor Applications

DOG TRACKING yes (when paired to compatible dog track system)

Tread XL - Overland Edition

Suction cup mount

Vehicle power cable

Locking magnet-assisted mount

USB-C cable

Documentation
