XP-9-HW Puck Transducer

Humminbird XP-9-HW Puck

Model: 710275-1

• This accessory is compatible with the following Humminbird products: HELIX 5 CHIRP G2 - GPS-equipped models only, HELIX 7 CHIRP G2/G3 - GPS-equipped and CHIRP DI G2 models, HELIX 7 CHIRP G2N/G3N - All models, HELIX 8 CHIRP G3N - All models, HELIX 9 CHIRP G2N/G3N - All models, HELIX 10 CHIRP G2N/G3N - All models, HELIX 12 CHIRP G2N/G3N - All models, ICE HELIX CHIRP G2 - All models (In Open Water Mode).
• Side ImagingTM and Down ImagingTM units can support the XP 9 HW as a 2D sonar only transducer. This transducer does not support Side Imaging or Down Imaging.
• Dual Spectrum CHIRP Frequencies: Full: 150-220 kHz, Narrow: 180-240 kHz, Wide: 140-200 kHz
• Dual Spectrum CHRIP Max Depth: 1200ft (365m)

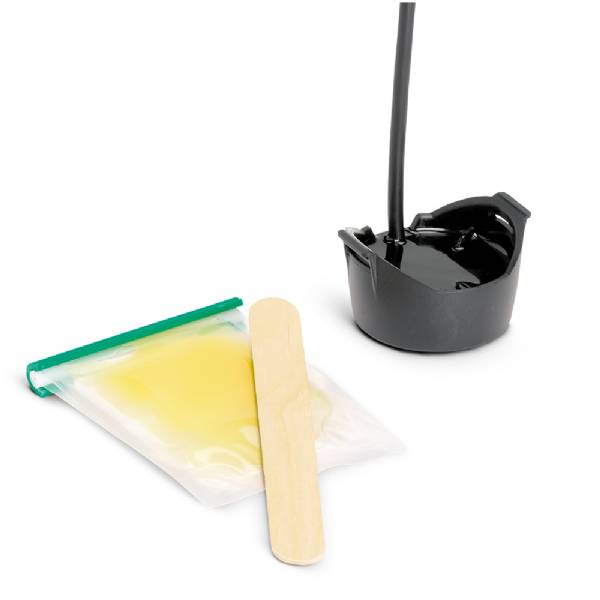

In-Hull Dual Spectrum CHIRP Transducer supports Dual Spectrum CHIRP 2D Sonar with high frequency beam and wide cone angle, offering CHIRP range of 150-220kHz and max depth of 1200ft. Intended for glue-in installation inside single layer fiberglass hulls. Includes epoxy kit and 20 feet cable.

Specifications

Mount Type	In-Hull
Sonar Type	Dual Spectrum
Current Models	HELIX 5, HELIX 7, HELIX 8, HELIX 9, HELIX 10, HELIX 12

What's in the Box:

• SOLIX 15 CHIRP MEGA SI+ G2
• Power cable
• Gimbval bracket
• Unit Cover
• XM 14 HW MSI T
