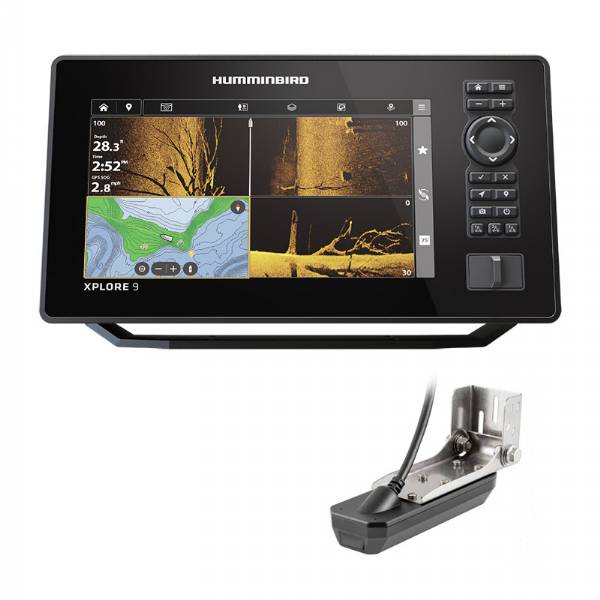

HUMMINBIRD
XPLORE 9 CMSI+
- Manufacturer part #
- 412000-1
- UPC
- 082324058653
- Condition
- New
$1,435.95
Currently unavailable
This product is currently unavailable and cannot be added to the cart.
- Use To Find Fish
- 9 Inch LCD Display
- Touchscreen Interface
- CMSI+ Sonar
- Preloaded With 13 USA And Canada Regions
- With Humminbird LakeMaster And CoastMaster VX Mapping Card
Specifications
- Memory Card Slot: Dual Micro SD
- Sonar-Standard: Dual Spectrum CHIRP, MEGA Side Imaging+, MEGA Down Imaging+
- Sonar-Optional: 50/83/200 kHz, Airmar High, High Wide, Medium, Medium Wide, and Low
- CHIRP - Frequencies Supported: Narrow Mode (180-240 kHz), Wide Mode (140-200 kHz), Full Mode (150-220 kHz)
- Sonar-Frequencies Supported: 50/83/200/455/800 kHz, HW DSC CHIRP, and MEGA
- Depth-Sonar: 3,500 ft (optional 50 kHz), 1,200 ft (standard transducer)
- CHIRP - Imaging Frequencies Supported: 455 kHz SI+ (405-505 kHz), 455 kHz (420-520 kHz), MEGA SI+ (1050-1175 kHz)
- Depth-Down Imaging: 200 ft (MEGA), 400 ft (455 kHz)
- Range-Side Imaging (Side-To-Side): 800 ft (455 kHz), 250 ft (MEGA)
- Interface: Touch Screen, Keypad Control
- Power Input: 10.8-20 VDC
- Power Output Peak-to-Peak: 8000 Watts
- Power Output RMS: 1000 Watts
- Screen Snap Shot: Included
- Sonar Recording: Included
- Mount-Standard: Gimbal
- Mount-Standard Size: 11.690 in W x 6.569 in H x 3.884 in D
- Mount-Optional: In-Dash Mounting Kit
- Mount-Optional Size: 6.259 in W x 11.69 in H x 3.3 in D
- Transducer Mount Location: Transom
- GPS Chartplotting: Included
- GPS Receiver: Internal
- GPS Trackplotting: Not Supported
- Waypoints, Routes, Tracks/Points: 10,000, 50, 50/20,000
- 360 Imaging Compatibility: Yes
- MEGA Live Compatibility: Yes
- Humminbird Basemap: Included
- LakeMaster Compatibility: Yes
- CoastMaster Compatibility: Yes
- Navionics Gold/HotMaps Compatibility: Yes
- Navionics Platinum+ Compatibility: Yes
- Platinum Compatibility: Yes
- Minn Kota Advanced GPS Navigation Compatibility: Yes
- Minn Kota i-Pilot Link Compatibility: Yes
- Minn Kota Talon Shallow Water Anchor Compatibility: Yes
- Radar Compatibility: Yes
- 5-Port Ethernet Switch Compatibility: Yes
- AIS Compatibility: Not Supported
- Autopilot Compatibility: No
- Heading Sensor GPS Compatibility: No
- Heading Sensor GPS (NMEA 2000) Compatibility: Yes
- NMEA2000: Included
- Target Separation: 2.5 in
- Upgradable Software: Yes
- View Preset Keys: Yes
- X-Press Menu System: Yes
- Custom Digital Readout: Yes
- Custom View Selections: Yes
- Display Colors Grayscale: 24-Bit
- Display Type: Color TFT
- Speed: Included
- Temperature: Built In
- Temperature Alarm: Yes
- Temperature Graph: Yes
- HDMI Compatible: No
- Warranty: Two-Year Warranty
Package contents
- Control head
- Power adapter
- Unit cover
- Mounting bracket
- Transducer XM-14-HW-CMSI-T
Shipping weight: 9 lb · Package dimensions: 12 × 7 × 4.5 in
