JOHNSON PUMP

CM95HP Aluminum Brushless Motor 27.2V Circulation Pump High Pressure Diameter 25mm

Manufacturer part #: 10-13606-10
Condition: New

$580.95

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Free ground shipping (48 states)

Special order – cancellations and returns may not be possible. Please double-check that this is the right item for your project.

Product details

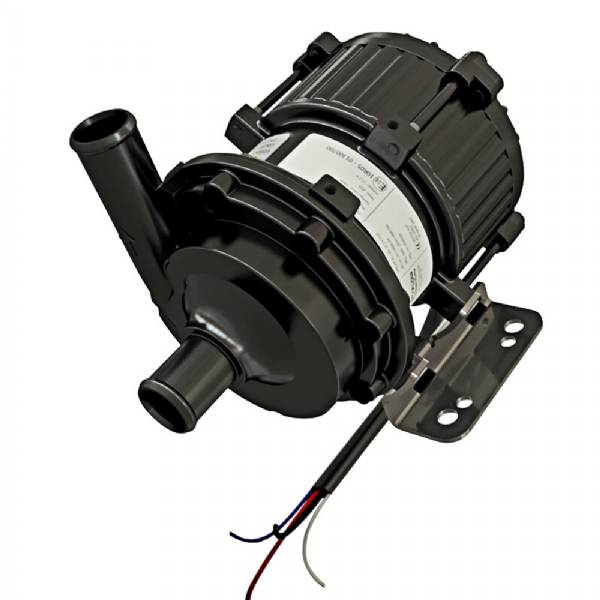

CM95HP Aluminum Brushless Motor 27.2V Circulation Pump High Pressure Diameter 25mm

These heavy-duty, magnetically driven, seal-less circulation pumps feature brushless motors designed for continuous use. They are ideal for circulation tasks in heating and cooling systems for buses, trains, boats, and similar applications. They also function well as general-purpose pumps wherever self-priming is not essential.

Features:

Limited 2-Year Warranty
Centrifugal pump (must be primed)
Magnetic drive (no shaft or mechanical seal)
Brushless motor
Long service life
Wide temperature range
Built-in thermal overload protection

EMC approved according to:

EN 55014-1:2006 + A1:2009 + A2:2011
EN 55014-2:1997 + A1:2001
EN 61000-6-3:2007 + A1:2011; Part 6-3
UN Regulation 10 (2004/104/EC:2004)
EN 61000-6-2:2005

Johnson Pump CM Series Pumps are normal-priming centrifugal pumps and should be mounted to ensure they are always flooded or be primed before being switched on.

These pumps should not be used with soiled water containing hard particles.

Specifications:

Pump Body: Black Anodized Aluminum
Impeller: PPS GF
Shaft: Hardened Stainless Steel
Motor: Permanent magnet brushless motor with ball bearings and electronics included
Liquid: Water/glycol mixture; max. 60% glycol, fresh water
Liquid temp.: Min. -40°C Max. +100°C (Min. -40°F Max. 212°F)
System pressure: -0,2 to 2,5 bar at +100°C (+212°F)
Port size: 25 mm (1") hose or 38 mm (1½") hose
Dry running: Max. 20 minutes
Input Power: Max. 315 W
Mounting: Separate universal bracket for flat surfaces

CAUTION: Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged by flushing with water after each use or at the end of each work day.
