LENCO
12inx12in Standard Mount Trim Tab Kit 12v with LED Integrated Switch
- Manufacturer part #
- 15109-103
- UPC
- 874847006286
- Condition
- New
$889.95
Estimated to ship by Monday, October 19.
Free ground shipping (48 states)
Lenco 12inx12in Standard Mount Trim Tab Kit 12v with LED Integrated Switch
Model: 15109-103
- Instant Response: Electric ball-screw actuators provide immediate deflection and hold trim angle securely without hydraulic lag or bleed-off.
- Integrated LED Helm Switch: Built-in display shows real-time plane positions with integrated photo-eye dimming for optimal visibility in bright sun or night operation.
- Auto-Retract Function: Tabs automatically return to fully retracted position when ignition power is switched off, protecting actuators during trailering and lift storage.
- Durable Construction: Heavy-duty 12-gauge 304 stainless steel trim plates with 5/8" flared trailing edges ensure maximum lift and resistance to corrosion.
- Watertight Plug-and-Play Wiring: Pre-terminated waterproof Deutsch connectors eliminate hard-splice failures at the transom.
Factory-complete 12V electric trim tab system engineered for 17' to 30' vessels. Features 12-gauge 304 stainless steel blades, high-torque submersible electric actuators, and an integrated LED tactile switch offering real-time blade positioning and auto-retract functionality.
The Lenco 15109-103 Standard Trim Tab Kit delivers immediate helm control to smooth out choppy seas, correct listing, eliminate porpoising, and improve overall fuel economy. Powered by oil-free, electric ball-screw actuators, this system eliminates hydraulic pumps, fluids, and external lines for a clean, maintenance-free installation.
The included all-in-one tactile switch integrates both dual actuator controls and precision LED indicators into a compact helm footprint, automatically retracting both planes to the upright position when engine ignition is turned off.
Specifications
| Tab Plane Dimensions | 12" Width (Hinge) × 12" Length (Reach) |
| Operating Voltage | 12V DC |
| Recommended Vessel Length | 17' — 30' (5.2 m — 9.1 m) |
| Minimum Transom Height | 14" (35.6 cm) |
| Blade Material | 12-Gauge 304 Marine-Grade Stainless Steel |
| Actuator Type | 12V Submersible Ball-Screw Actuators |
| Actuator Leads | 6 ft. factory leads with Deutsch connectors |
| Switch Style | Integrated Tactile Keypad with Dual LED Indicators |
| Switch Cut-Out Size | 2" diameter round helm cut-out |

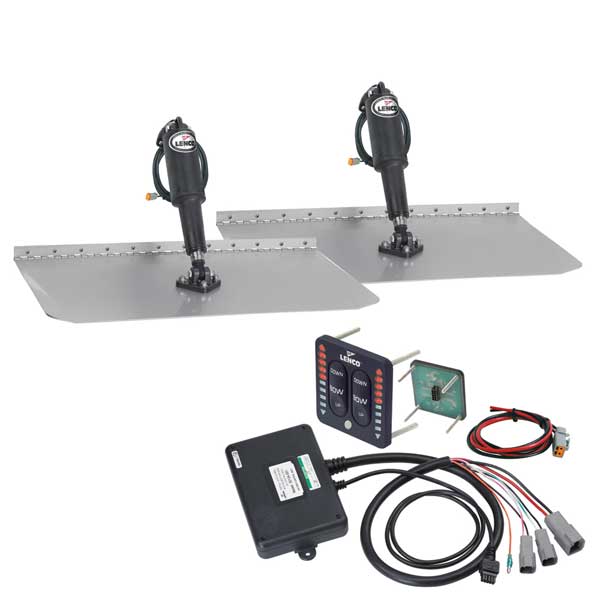

What's in the Box:
- (2) 12" × 12" 12-gauge 304 stainless steel trim tab planes
- (2) 12V Standard electric actuators with 6' waterproof Deutsch pigtails
- (2) 20' Actuator extension wiring harnesses
- (1) Integrated tactile LED indicator switch with built-in control box & 36" power harness
- (1) Stainless steel transom mounting hardware pack
- (1) Installation and wiring manual
Specifications
Shipping weight: 21.15 lb
