12inx18in Edge Mount Trim Tab Kit 12v Requires Switch

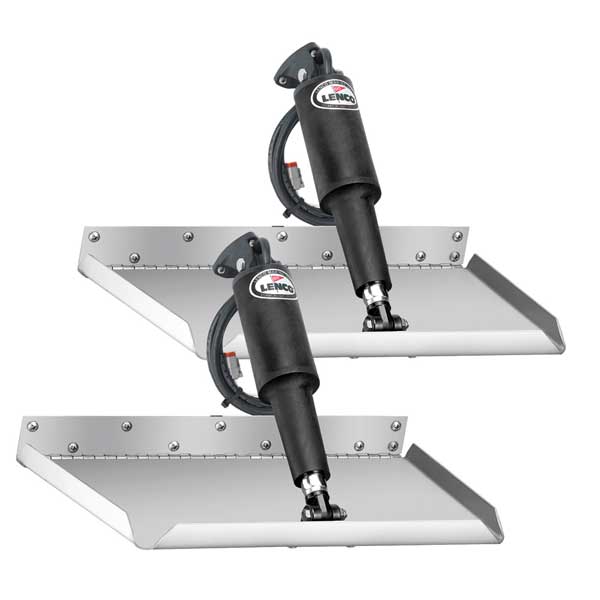

Lenco 12 X 18 in Edge Mount Trim Tab Kit - Requires Switch

Model: 15017-101

Designed for boat applications where a lower actuator mounting height is desirable. The actuator mounts at the trailing edge of the blade giving it a 13.5 in (34.29 cm) mounting height on 9 in (22.9 cm) long blades & 11 in (27.94 cm) mounting height on 12 in (30.5 cm) long blades. All edges are turned up for added strength and style. Boat lengths are from 14 feet (4.3 m) to 36 feet (11 m). Blades are constructed of 12-gauge (2.7 mm) laser cut 304 stainless steel with 1 in (2.5 cm) turned up edges and a 5 degree taper on both sides to the trailing edge
