12inx36in Standard Mount Trim Tab Kit 12v Requires Switch

Lenco 12 X 36 in Standard Mount Trim Tab Kit - Requires Switch

Model: 15011-101

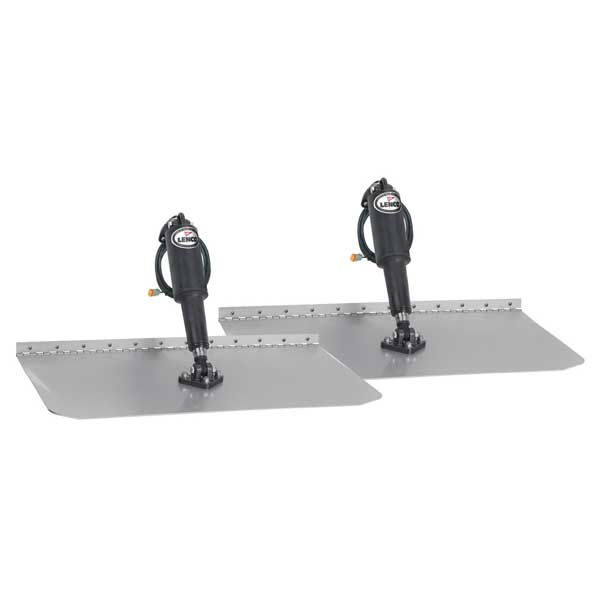

The series that started the electric revolution! Lencos original Trim Tab design is still the most popular series they build. Ideal for most common style boats from center console fishing boats to cuddy cabin cruisers. Boat lengths 14 feet (4.3 m) to 69 feet (21 m). Blades are constructed of 12 gauge (2.7 mm) laser cut 304 stainless steel with a 5/8 in (1.6 cm) flared trailing edge & 1/8 in (3.2 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

Specifications

Plane Size L x W	12 in X 36 in
Boat length	38 feet - 69 feet
Hinge Height	1 in
Min Transom Height	14 in
Voltage	12vDC

What's in the Box:

• (2) 12-gauge stainless steel standard finish blades
• (2) 15054-001 actuators with 6 feet (1.8 m) leads and Deutsch connectors
• (2) 30133-103 actuator extension wiring harnesses - 20 feet (6.1 m) length
• (2) 15085-001 upper mounting brackets with gland seal
• (2) 50014-001 lower mounting brackets
• Lenco owner's/installation manual
• Stainless steel mounting hardware
"
