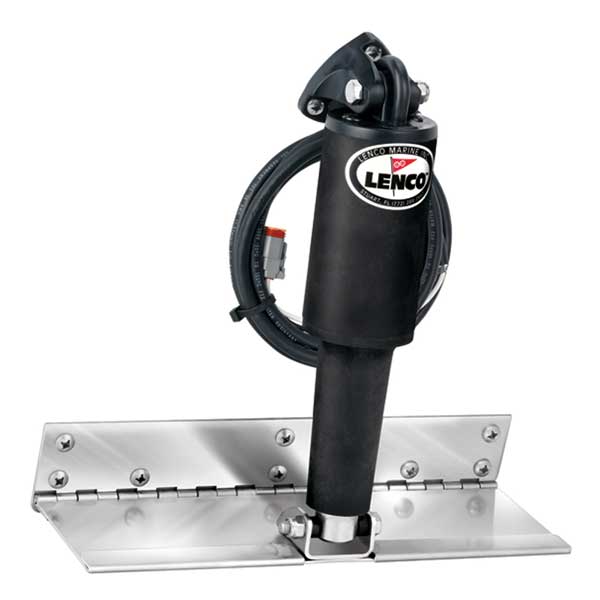

4inx12in Limited Space Trim Tab Kit 12v Polished Finish

Lenco 4 x 12 in Electro-Polish

Model: 15088-101

Engineered to fit behind ladders. This unique design gives you all the benefits of a standard tab in an ultra compact design. These kits are updated with 11-gauge stainless steel blades. Boat lengths 14 feet (4.3 m) to 25 feet (7.6 m). Blades are constructed of a stronger 11-gauge laser cut 304 stainless steel and 3/8 in(9.5 mm) diameter hinge pin. Upper and lower high impact corrosion proof mounting brackets with mechanical cable gland seal.

Specifications

L" X W"	4 in X 12 in
Min. Transom Height	13 in (33 cm)
Hinge Height	2 in (5.1 cm)

What's in the Box:

• (2) NEW 11-gauge stainless steel blades with option of standard finish or Electro-Polish finish
• (2) 15057-001 XDS actuators with 6 feet (1.8 m) lead and Deutsch connectors
• (2) 30133-103 actuator extension wiring harnesses - 20 feet (6.1 m) length
• (2) 15085-001 upper mounting brackets with gland seal
• Lower mounting brackets included
• Lenco owner's/installation manual
• Stainless steel mounting hardware
"
