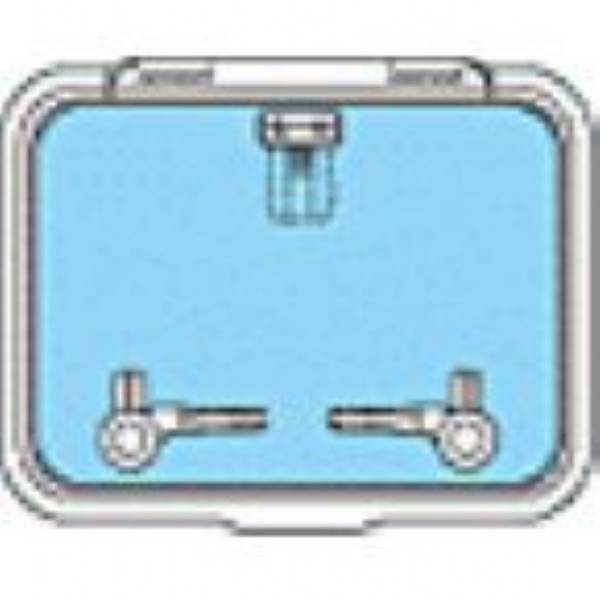

Size 30 Ocean Series Hatch Flange Base
- Manufacturer part #
- 39630070
- UPC
- 743683101885
- Condition
- New
$603.95
In stock
Estimated to ship by Monday, October 19.
Free ground shipping (48 states)
Product details
- Fit to a flat surface with a maximum tolerance of +/- 1mm.
- Fastening size at hinge section use (M6 / 1/4 in).
- Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
| Lower Frame (in) | Acrylic Colour | Hatch Weight (lb) | Acrylic Window Thickness (in) |
| 1 in Flange | Smoke Grey | 9.09 | 3/8 |
Dimensions
| Width Y (in) | Height Z (in) | Radii R (in) | Hinge Length HX (in) | Hinge Width HY (in) | Cut-Out Length Flat X1 (in) | Cut-Out Width Flat Y1 (in) | Cut-Out Radii Flat R1 (in) | |
| 15 3/8 | 20 1/2 | 1 9/16 | 2 15/16 | 3/16 | 13 3/16 | 12 7/8 | 18 | 1 11/16 |
Shipping weight: 12 lb
