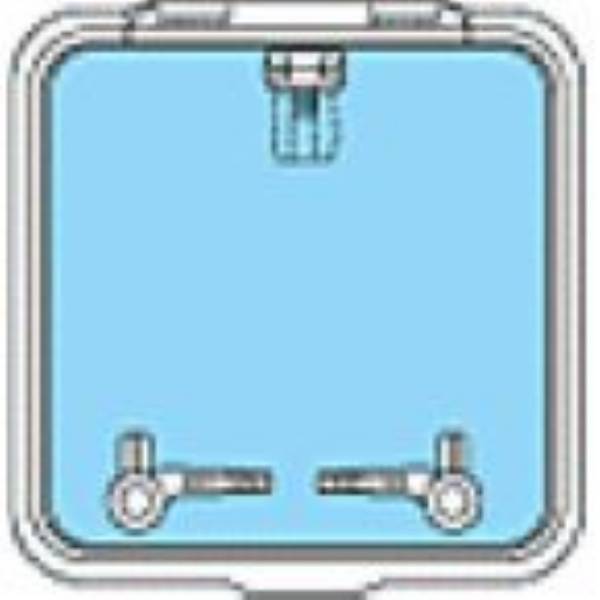

Size 44 Ocean Series Hatch Flange Base

• Fit to a flat surface with a maximum tolerance of +/- 1mm.
• Fastening size at hinge section use (M6 / 1/4 in).
• Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.

Lower Frame (in)	Acrylic Colour	Hatch Weight (lb)	Acrylic Window Thickness (in)
1 in Flange	Smoke Grey	11	1/2

Dimensions

Length X (in)

Width Y (in)	Height Z (in)	Radii R (in)	Hinge Length HX (in)	Hinge Width HY (in)	Cut-Out Length Flat X1 (in)	Cut-Out Width Flat Y1 (in)	Cut-Out Radii Flat R1 (in)
20 1/16	20 1/16	1 11/16	3	3/16	11 7/8	17 3/8	17 3/8	1 11/16
