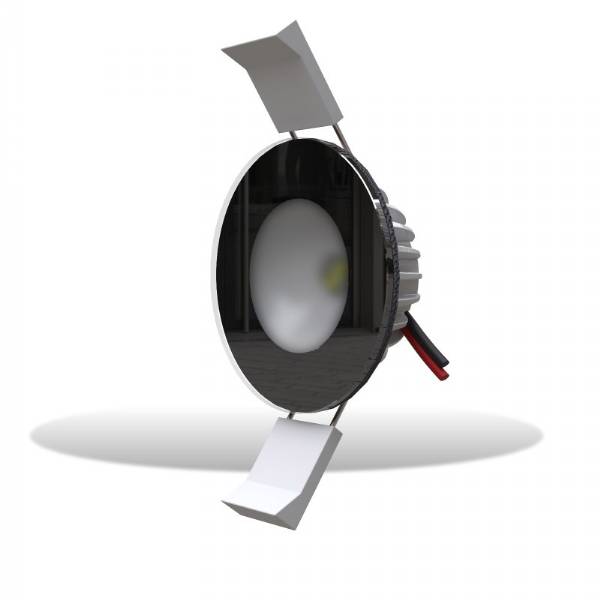

Eclipse DL55 Downlight RGBW 12v Black Bezel

Lumishore Eclipse DL55 Downlight RGBW 12v Black Bezel

Model: Eclipse DL55 / 010-04541-00

Lumishore's ECLIPSE Downlights offer exceptional lighting for various indoor and outdoor overhead areas on board.

They are fully water-sealed and have an IP67 rating. Installation is straightforward with a 2-wire connection and a shallow depth of just 21mm (0.83 in).

Available in White + RGB, dual color blue and white, or single color blue or white, you can select either a black or white finish to match your boat's aesthetic.

Specifications

Available Colors	White (5000k) + Red, Green, Blue
LED Type	1 x 3W Red LEDs / 1 x 3W Blue LEDs / 1 x 3W Blue LEDs / 1 x 3W White LEDs
Customer Control Options	On/Off Switch or ECLIPSE Command Center
Electrical Installation	Simple 2 Wire Installation
Supply Voltage Range	12V DC Only (10 - 15V DC)
Max Current Draw (12/24V DC)	0.4A
Ingress Protection	IP67
Front Diamater (Bezel)	64.0mm (2.519)
Profile (When Installed)	3.00mm (0.118 in)
Hole Diameter for fitting	50.8mm (2.0 in)
Mechanical Installation	Stainless Steel Spring Clips Marine Adhesive (Optional)
Warranty	3 Years

"
