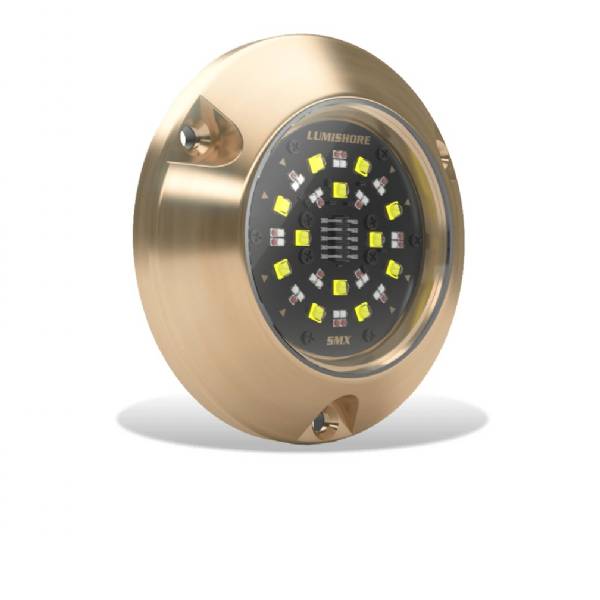

EOS SMX154 Surface Mount RGBW LED

Lumishore EOS SMX154 Surface Mount RGBW LED

Model: SMX154 / 010-04508-00

The SMX154 offers boat owners unprecedented full color control of their underwater lighting system, delivering 7,000 verified fixture lumens and a wide 90 deg beam angle.

Control your SMX154 underwater lights directly from your compatible MFD and/or Lumishore Display.

Lumishore's unique light discovery and light auto-install function simplifies the system setup and reduces installation time.

Suitable for stepped hulls, transoms, and side mounting.

Specifications

AVAILABLE LED COLORS	FULL EOS COLOR CHANGE (RGBW)
LUMENS	15,750
VERIFIED FIXTURE LUMENS (WHITE)	7,000
NUMBER AND TYPE OF LEDS	White-12×10W / Green-12×3W / Blue-12×3W / Red-16×3W
LED POWER - HICOB ARRAY	YES
TYPICAL LED LIFE	50,000+ HOURS
BEAM ANGLE (DEGREES)	90 deg
DRIVER	Multi-Channel Internal Driver
SUPPLY VOLTAGE	12/24 V DC
MAX CURRENT DRAW	4.0A/2.0A
HOUSING TYPE	MARINE GRADE BRONZE / GLASS LENS
USER CONTROL OPTIONS	From your MFD and/or optional Lumishore Display
Warranty	3 Years

What's in the Box:

• One (1) EOS SMX154 Light with Built-in Driver
