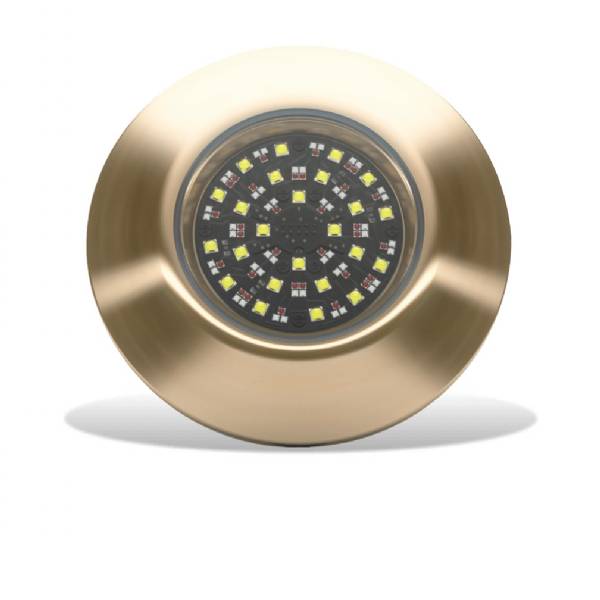

EOS THX804 Thru-Hull Mount and Driver RGBW LED

Lumishore EOS THX804 Thru-Hull Mount and Driver RGBW LED

Model: EOS THX804 / 010-04520-00

The fully controllable color change THX804 underwater light delivers the greatest range of colors, 12,000 verified fixture lumens and an ultra-wide 110 deg beam angle for the ultimate halo-effect.

Control colors, modes & special effects directly from your MFD and/or the optional Lumishore Display.

Lumishore's THX models feature a standard 1in fitting and an external driver. Flush-fit in design, with extremely low profiles.

Suitable for transom, side and bottom mounting.

Specifications

AVAILABLE LED COLORS	FULL EOS COLOR CHANGE (RGBW)
LUMENS	27,000
VERIFIED FIXTURE LUMENS (WHITE)	12,000
NUMBER AND TYPE OF LED	White-24×10W / Green-24×3W / Blue-24×3W / Red-32×3W
LED POWER - HICOB ARRAY	YES
TYPICAL LED LIFE	50,000+ HOURS
BEAM ANGLE (DEGREES)	110 deg
DRIVER	Multi-Channel External Driver
SUPPLY VOLTAGE	12/24 V DC
MAX CURRENT DRAW	8.8A/4.4A
HOUSING TYPE	MARINE GRADE ALUMINUM BRONZE
USER CONTROL OPTIONS	From your MFD and/or optional Lumishore Display
LIGHTS SYNCHRONIZED	YES
COLOR CYCLE w/SPEED ADJUST	YES
COLOR SWEEP w/SPEED ADJUST	YES
CUSTOMIZABLE FAVORITES	YES
FIXED & RANDOM STROBES	YES
PROGRAMMABLE SCENES	YES
WI-FI CONTROL (APP)	YES
SOUND-TO-LIGHT	YES
BRIGHTNESS ADJUST	YES
AUTO LIGHT DISCOVERY & SETUP	YES

What's in the Box:

• One (1) EOS THX804 Light
• One (1) External Driver
• One (1) 1M DMX cable (60-0403)
