LUMISHORE

SUPRA TIX1604 Interchageable Thru Hull Blue/White LED

Manufacturer part #: 010-04528-00
UPC: 847772004047
Condition: New

$5,229.99

Available for backorder

Get in a queue earlier to be among the first to receive this item when it becomes available again. Most backordered items ship in approximately 2 to 5 weeks. A backorder may be cancelled from your account or by sending an email at any time before it ships.

Free ground shipping (48 states)

Product details

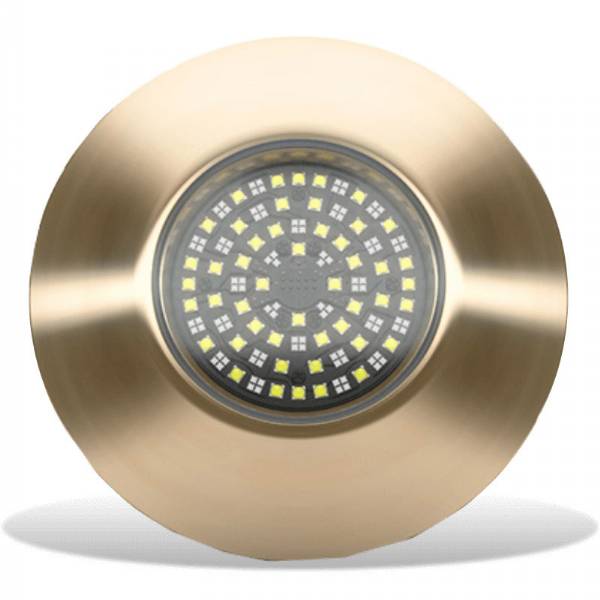

Lumishore SUPRA TIX1604 Interchageable Thru Hull Blue/White LED

Model: SUPRA TIX1604 / 010-04528-00

The TIX1604 is the ultimate choice for those who want full power dual-colored lights without sacrificing brightness! This model packs a powerful 20,000 fixture lumens into a low profile, interchangeable thru-hull and an ultra-wide 110 deg beam angle.

Available in blue and white. Easily switch between colors, fade colors, adjust brightness, and strobe in two speeds.

TIX models have the added benefit of an internal LED array and integrated driver, for the ability to service from inside the hull and to simplify installation.

Controlled by the SUPRA i-Connect Hub & Switch, or directly from your compatible MFD and/or optional Lumishore Display, when you add the SUPRA Bridge Module.

Suitable for transom, side and bottom mounting.

Specifications

AVAILABLE LED COLORS	DUAL COLOR (BLUE & WHITE)
LUMENS	45,000
VERIFIED FIXTURE LUMENS (WHITE)	20,000
NUMBER AND TYPE OF LED	White - 48 x 10W, Blue - 108 x 3W
LED POWER - HICOB ARRAY	YES
TYPICAL LED LIFE	50,000+ HOURS
BEAM ANGLE (DEGREES)	110 deg
DRIVER	Multi-Channel Internal Driver
SUPPLY VOLTAGE	24 V DC
MAX CURRENT DRAW	6.5A
HOUSING TYPE	MARINE GRADE ALUMINUM BRONZE
USER CONTROL OPTIONS	i-CONNECT HUB & SWITCH OR YOUR MFD WITH THE SUPRA BRIDGE
LIGHTS SYNCHRONIZED	YES
BRIGHTNESS ADJUST	YES
STROBE	YES
SYNCHRONIZED STROBE	YES
FADE MODE	YES
SYNCHRONIZED FADE MODE	YES
WARRANTY	3 YEARS

What's in the Box:

One (1) SUPRA TIX1604 Light with Built-in Driver

Shipping weight: 3.9 lb
