0-5 PSI Transducer

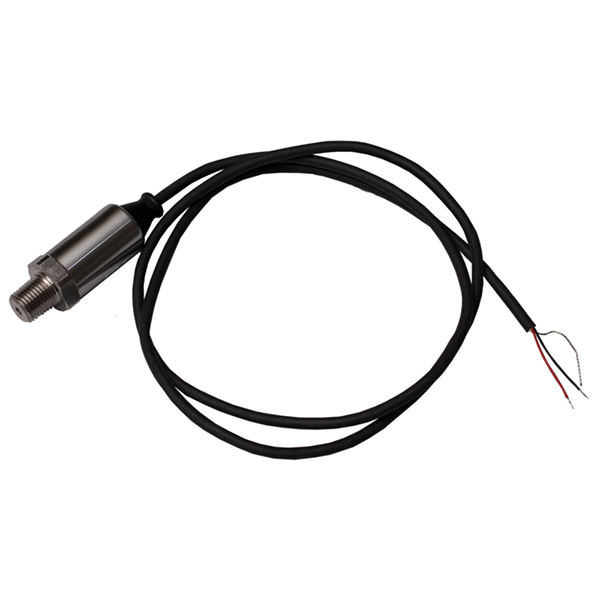

Maretron 0-5 PSI Transducer

Model: PT-0-5PSI-01

Pressure Transducer 0 to 5 PSI, or tank depth up to 138" of water (3.5m)

Specifications

Sensor Type	Gauge
Output	4 — 20 mA current loop, loop powered
Excitation Voltage	9 VDC to 30 VDC
Compatible Fluids / Gases	Air, Brake Fluid, Diesel, Diesel Exhaust Fluid (DEF), Hydraulic Fluid, Hydrogen, Kerosene, Motor Oil, Nitrogen, Refrigerant, Fresh Water, Sea Water, and Waste Water
Operating Temperature	23°F to 140°F (-5°C to 60°C)
Media Temperature	-13°F to 257°F (-25°C to 125°C)
Over Pressure Max	29 PSI (2 bar)
Construction	1.4305 (303 Stainless Steel), Thick Film on Ceramic Al2O3 (96 %) Sensor, FKM 70 Sh O-Ring
Cable	P67, PVC (cable gland PA6-3)
Cable Length	4.9 ft (1.5 m)
Vibration	4 g (10 — 2000 Hz)
Shock	50 g/8 ms
EMC Compatibility	EN 61000-6-3, EN 61000-6-2
Humidity	Max. 95% relative
Weight	Weight
